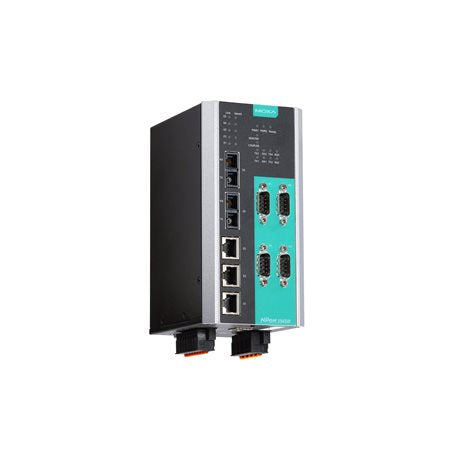

• Moxa NPort S9450I-2M-SC-HV-T rugged device server with black teal front panel, Ethernet ports, serial interfaces, orange power connectors
1 1

Moxa

Moxa NPort S9450I-2M-SC-HV-T | NPort S9450I 4-Port RS-232/422/485 Device Server, 2x MM SC, HV, -T

Moxa NPort S9450I-2M-SC-HV-T | NPort S9450I 4-Port RS-232/422/485 Device Server, 2x MM SC, HV, -T

Authorised Moxa Partner

NPort S9450I-2M-SC-HV-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort S9450I-2M-SC-HV-T is a rugged 4-port RS-232/422/485 combo device server with a built-in managed Ethernet switch, designed for electrical substations and other harsh industrial environments. This model provides 3 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX multi-mode SC fibre ports, and accepts a high-voltage 88 to 300 VDC / 85 to 264 VAC power input. The -T wide temperature rating supports operation from -40 to 85°C.

Compliant with IEC 61850-3 and IEEE 1613 for power substation use, the unit offers 2 kV serial isolation, 4 kV serial surge protection and dual redundant power inputs. Protocol gateway support for Modbus and DNP3, Real COM drivers for Windows and Linux, and Ethernet redundancy through Turbo Ring, Turbo Chain and RSTP make it well suited to connecting legacy serial equipment into resilient IP networks.

Features

- Built-in full-function managed Ethernet switch with RJ45 and multi-mode fibre ports
- Modbus and DNP3 protocol gateway support
- Operation modes: Real COM, RFC2217, TCP Client, TCP Server, UDP, Modbus, DNP3
- Real COM/TTY drivers for Windows and Linux
- IEC 61850 MMS protocol support for power SCADA
- Ethernet redundancy with Turbo Ring v1/v2, Turbo Chain and RSTP
- Security features including HTTPS/SSL, SSH, TACACS+ and RADIUS
- Automatic data direction control (ADDC) for RS-485
- Configuration via CLI, web console or Windows utility
- Wide -40 to 85°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports, DB9 male
- 3 x 10/100BaseT(X) RJ45 ports
- 2 x 100BaseFX multi-mode SC fibre ports
- Fibre: OM1 50/125 µm, typical distance 4 km, 1300 nm typical wavelength
- Serial baudrate: 50 bps to 921.6 kbps, including non-standard baudrates
- Serial isolation 2 kV, serial surge protection 4 kV
- Dual power inputs, 88 to 300 VDC / 85 to 264 VAC, 5-contact removable terminal block
- Reverse polarity protection supported
- 2 x digital inputs and 2 x alarm contact channels
- 64 VLANs, 256 IGMP groups, 4 priority queues
- Operating temperature -40 to 85°C, humidity 5 to 95% non-condensing
- Metal housing, 80 x 160 x 109 mm, 2.54 kg
- DIN-rail mounting, wall mounting with optional kit
- IEC 61850-3, IEEE 1613, UL/cUL Class I Division 2 Groups A/B/C/D

FAQs

Q: What power input does the NPort S9450I-2M-SC-HV-T accept?
A: This HV model accepts 110/220 VAC/VDC, covering 88 to 300 VDC and 85 to 264 VAC, through dual power inputs on a removable 5-contact terminal block.

Q: Which fibre type and connector does this model use?
A: It has 2 x 100BaseFX multi-mode SC fibre ports, supporting OM1 50/125 µm fibre with a typical distance of 4 km at 1300 nm.

Q: Which serial interfaces are supported?
A: Each of the 4 DB9 male ports can be set to RS-232, RS-422 or RS-485, with baudrates from 50 bps to 921.6 kbps.

Q: Is it suitable for electrical substations?
A: Yes. The unit is compliant with IEC 61850-3 and IEEE 1613 and supports IEC 61850 MMS for power SCADA integration.

Q: What does the -T suffix mean?
A: The -T denotes the wide temperature version, rated for operation from -40 to 85°C.

Q: Can it act as a Modbus or DNP3 gateway?
A: Yes. It supports Modbus TCP (up to 32 client and 16 server connections) and transparent DNP3 (up to 16 master and 32 outstation connections).
