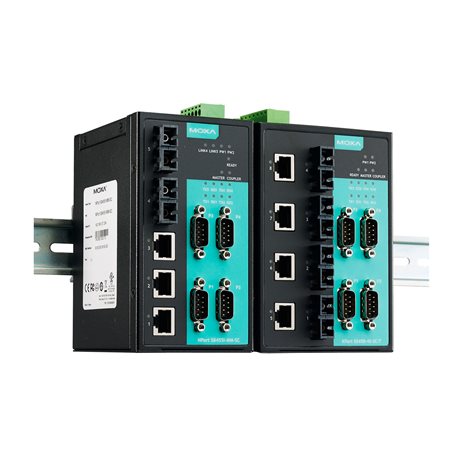

Moxa NPort S8455I-T | 4-Port RS-232/422/485 Device Server, 5x RJ45

Authorised Moxa Partner

SKU:NPort S8455I-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort S8455I-T is an industrial combo device server that pairs a 4-port RS-232/422/485 serial device server with a built-in 5-port 10/100M managed Ethernet switch. It is designed for connecting serial equipment to Ethernet networks in harsh environments, with 5 x 10/100BaseT(X) copper ports and a -40 to 75°C wide operating temperature range. Serial ports are protected by 2 kV isolation.

Serial QoS lets you prioritise serial data transmission, while Turbo Ring, Turbo Chain and STP/RSTP provide Ethernet redundancy. The unit accepts 12 to 48 VDC power input, includes 2 digital inputs and 2 alarm contact channels, and mounts on a DIN rail, with optional wall mounting. It complies with UL 508 industrial safety requirements.

Features

- Combines a serial device server and a managed Ethernet switch in one unit
- Serial QoS for configuring serial data transmission priority
- Ethernet redundancy with Turbo Ring, Turbo Chain and STP/RSTP
- 2 kV isolation protection for serial ports
- Wide -40 to 75°C operating temperature range
- Complies with UL 508 industrial safety requirements
- Digital inputs and alarm contact channels for local monitoring

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial ports: 4 x RS-232/422/485
- Baudrate: 50 bps to 921.6 kbps
- Ethernet ports: 5 x 10/100BaseT(X) RJ45
- Fibre ports: None (all-copper model)
- Isolation: 2 kV
- Alarm contact channels: 2, resistive load 1 A @ 24 VDC
- Digital input channels: 2
- Digital inputs: +13 to +30 V for state 1, -30 to +1 V for state 0, max. input current 8 mA
- Power input: 12 to 48 VDC
- Operating temperature: -40 to 75°C
- Dimensions: 73.1 x 134 x 125 mm
- Weight: 578 g
- Mounting: DIN-rail, wall mounting with optional kit
- MTBF: 287,354 hrs (Telcordia TR/SR)

FAQs

Q: Which serial interfaces does the NPort S8455I-T support?
A: It provides 4 serial ports, each configurable as RS-232, RS-422 or RS-485, with baudrates from 50 bps to 921.6 kbps.

Q: Does this model have fibre ports?
A: No. The S8455I-T is an all-copper model with 5 x 10/100BaseT(X) RJ45 Ethernet ports and no 100BaseFX ports.

Q: What does the -T suffix mean?
A: The -T suffix denotes the wide temperature version, rated for operation from -40 to 75°C.

Q: How is the NPort S8455I-T powered?
A: It accepts 12 to 48 VDC power input.

Q: What Ethernet redundancy options are supported?
A: The built-in managed switch supports Turbo Ring, Turbo Chain and STP/RSTP for Ethernet redundancy.

Q: How is the unit mounted?
A: It mounts on a DIN rail as standard, and wall mounting is available with an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
