Moxa NPort S8455I-SS-SC-T | NPort S8455I 4-Port Serial Device Server, 2x SC Single-Mode, 2kV, -40-75C

Authorised Moxa Partner

SKU:NPort S8455I-SS-SC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

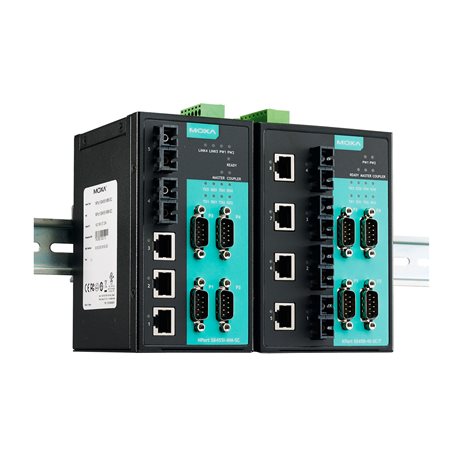

The Moxa NPort S8455I-SS-SC-T is an industrial 4-port RS-232/422/485 serial device server with a built-in managed Ethernet switch. It pairs 3 x 10/100M RJ45 ports with 2 x 100BaseFX single-mode SC fibre ports, 2 kV isolation on the serial signals and a -40 to 75 C operating range, making it well suited to harsh industrial networks that need serial devices connected over fibre.

The four DB9 male serial ports support RS-232, RS-422 and RS-485, with 15 kV ESD protection on all serial signals and an adjustable pull high/low resistor for RS-485. Ethernet redundancy is provided by Turbo Ring and Turbo Chain with recovery under 20 ms, or RSTP/STP. The metal housing mounts on a DIN-rail or wall and runs from a 12 to 48 VDC input.

Features

- 4-port RS-232/422/485 serial device server with built-in managed Ethernet switch
- Serial QoS to prioritise serial data transmission
- Turbo Ring and Turbo Chain redundancy with recovery under 20 ms, plus RSTP/STP
- QoS, IGMP snooping/GMRP, VLAN, LACP, SNMPv1/v2c/v3 and RMON supported
- 2 kV isolation protection for serial signals
- Adjustable pull high/low resistor for RS-485 ports
- Surge protection for serial, Ethernet and power

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports, DB9 male
- 3 x 10/100M RJ45 Ethernet ports
- 2 x 100BaseFX single-mode fibre ports, SC connector
- 2 kV isolation for serial signals
- 15 kV ESD protection on all serial signals
- Input voltage: 12 to 48 VDC
- Power consumption: 935 mA @ 12 V, 470 mA @ 24 V
- Operating temperature: -40 to 75 C
- Console port: 1 x 8-pin RJ45
- Metal housing, DIN-rail and wall-mount
- Dimensions: 73.1 x 134 x 105 mm
- Weight: 995 g
- Configuration: Web Console, Telnet Console, Serial Console

FAQs

Q: What fibre connection does the NPort S8455I-SS-SC-T use?
A: It has 2 x 100BaseFX single-mode fibre ports with SC connectors, alongside 3 x 10/100M RJ45 copper ports.

Q: Which serial interfaces are supported?
A: All four DB9 male serial ports support RS-232, RS-422 and RS-485, with an adjustable pull high/low resistor available on the RS-485 ports.

Q: What operating temperature range does it support?
A: The -T model operates from -40 to 75 C, suitable for extended-temperature industrial environments.

Q: Does it support Ethernet redundancy?
A: Yes. It supports Turbo Ring and Turbo Chain with recovery time under 20 ms, as well as RSTP/STP.

Q: What power input does it require?
A: It runs from a 12 to 48 VDC input, drawing 935 mA at 12 V or 470 mA at 24 V.

Q: How is it mounted?
A: The metal housing is designed for DIN-rail or wall mounting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
