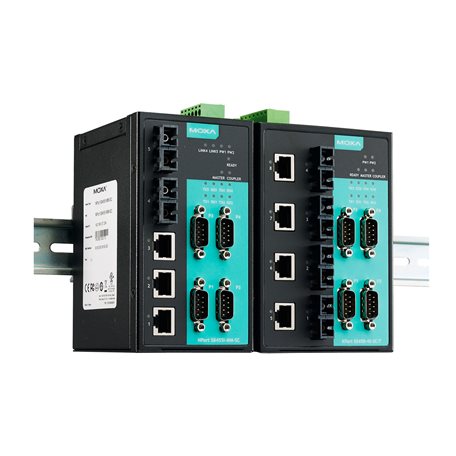

Moxa NPort S8455I-SS-SC | 4-Port Serial Device Server, SM SC Fibre

Authorised Moxa Partner

SKU:NPort S8455I-SS-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort S8455I-SS-SC is an industrial 4-port RS-232/422/485 serial device server with a built-in managed Ethernet switch. It combines 3 x 10/100BaseT(X) RJ45 ports with 2 x 100BaseFX single-mode SC fibre ports reaching up to 40 km, making it well suited to connecting serial equipment over long-distance fibre links in factory, utility and infrastructure networks. Metal housing, DIN-rail mounting and 12 to 48 VDC redundant dual power inputs support reliable deployment across a 0 to 60°C operating range.

Serial ports provide 2 kV isolation and surge protection, while Turbo Ring, Turbo Chain and RSTP/STP deliver Ethernet redundancy with recovery times under 20 ms. Serial QoS, VLAN, IGMP-snooping, SNMPv1/v2c/v3 and HTTPS/SSH management are supported, along with the full range of NPort 5000 series device server functions.

Features

- 4-port RS-232/422/485 serial device server
- Serial QoS for configuring serial data transmission priority
- Built-in managed Ethernet switch with 2 fibre and 3 copper Ethernet ports
- Ethernet redundancy with Turbo Ring and Turbo Chain (recovery time under 20 ms) or RSTP/STP
- QoS, IGMP-snooping/GMRP, VLAN, LACP, SNMPv1/v2c/v3 and RMON supported
- 2 kV isolation for serial signals
- Adjustable pull high/low resistor for RS-485 ports
- Surge protection for serial, Ethernet and power
- Supports the full range of NPort 5000 series device server functions

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports, DB9 male, 2 kV isolation
- Baudrate 50 bps to 921.6 kbps
- 3 x 10/100BaseT(X) RJ45 Ethernet ports
- 2 x 100BaseFX single-mode SC fibre ports, up to 40 km, 1310 nm
- Link budget 29 dB, G.652 fibre
- Redundancy: Turbo Ring v1/v2, Turbo Chain, RSTP
- Up to 64 VLANs, 256 IGMP groups, 4 priority queues
- Security: HTTPS, SSL, SSH
- 2 digital inputs and 2 alarm contact channels
- Dual power inputs, 12 to 48 VDC, 935 mA @ 12 VDC
- Operating temperature 0 to 60°C
- Metal housing, DIN-rail mounting, wall mounting with optional kit
- Dimensions 73.1 x 134 x 125 mm, weight 578 g
- Class I Division 2 hazardous locations
- MTBF 286,993 hrs (Telcordia)

FAQs

Q: What fibre type and distance does the NPort S8455I-SS-SC support?
A: It has 2 x 100BaseFX single-mode SC ports for G.652 fibre at 1310 nm, with a typical distance of up to 40 km and a 29 dB link budget.

Q: Which serial interfaces does it support?
A: Its 4 DB9 male serial ports support RS-232, RS-422 and RS-485, with baudrates from 50 bps to 921.6 kbps and 2 kV isolation.

Q: Can it be used in a redundant ring network?
A: Yes. The built-in managed switch supports Turbo Ring v1/v2, Turbo Chain and RSTP/STP for Ethernet redundancy, with Turbo Ring and Turbo Chain recovering in under 20 ms.

Q: How is it powered?
A: It has dual redundant 12 to 48 VDC power inputs via removable 6-contact terminal blocks, plus 2 alarm contact channels for fault signalling.

Q: What is the operating temperature range?
A: This model operates from 0 to 60°C, so it suits controlled industrial enclosures and cabinets rather than extended wide-temperature environments.

Q: How is it mounted?
A: It mounts on a DIN rail as standard in a metal housing, and can be wall mounted using an optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
