Moxa NPort S8455I-MM-SC-T | NPort S8455I 4-Port RS-232/422/485 Device Server, Multi-Mode SC Fibre, -40 to

Authorised Moxa Partner

SKU:NPort S8455I-MM-SC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

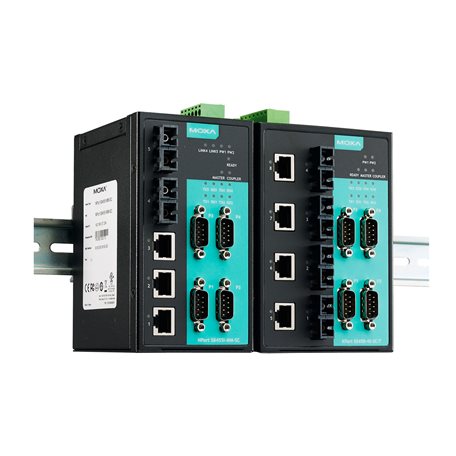

The Moxa NPort S8455I-MM-SC-T is an industrial 4-port RS-232/422/485 serial device server with a built-in managed Ethernet switch. It provides 3 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX multi-mode SC fibre ports, so serial devices and Ethernet equipment can share a single ruggedised unit. The wide-temperature design operates from -40 to 75C, making it well suited to factory floors, outdoor cabinets and other harsh industrial environments.

This model delivers 15 KV ESD protection and 2 kV isolation on the serial signals, accepts a 12-48 VDC power input, and supports Turbo Ring and Turbo Chain redundancy with recovery times under 20 ms, or RSTP/STP. Serial QoS lets you prioritise serial data transmission, while the managed switch functions (VLAN, IGMP snooping/GMRP, LACP, SNMPv1/v2c/v3 and RMON) allow integration into larger industrial networks.

Features

- Combines a serial device server with a managed Ethernet switch
- Serial QoS for prioritising serial data transmission
- Ethernet redundancy with Turbo Ring and Turbo Chain (recovery under 20 ms) or RSTP/STP
- QoS, IGMP snooping/GMRP, VLAN, LACP, SNMPv1/v2c/v3 and RMON support
- Wide operating temperature range of -40 to 75C for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports
- 3 x 10/100BaseT(X) RJ45 ports
- 2 x 100BaseFX multi-mode SC fibre ports, typical distance 4 km
- 15 KV ESD protection
- 2 kV isolation for serial signals
- 12-48 VDC power input
- Operating temperature -40 to 75C

FAQs

Q: What serial interfaces does the NPort S8455I-MM-SC-T support?
A: It provides 4 serial ports, each supporting RS-232, RS-422 and RS-485.

Q: What network ports does this model provide?
A: It has 3 x 10/100BaseT(X) RJ45 copper ports and 2 x 100BaseFX multi-mode SC fibre ports with a typical distance of 4 km.

Q: What is the operating temperature range?
A: The -T model is rated for -40 to 75C, suitable for harsh industrial environments.

Q: Does it support Ethernet redundancy?
A: Yes. It supports Turbo Ring and Turbo Chain with a recovery time under 20 ms, as well as RSTP/STP.

Q: What power input does it require?
A: It operates from a 12-48 VDC power input.

Q: How does this differ from other NPort S8000 models?
A: This variant uses multi-mode SC fibre with 3 copper and 2 fibre Ethernet ports and the wide-temperature -40 to 75C rating.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
