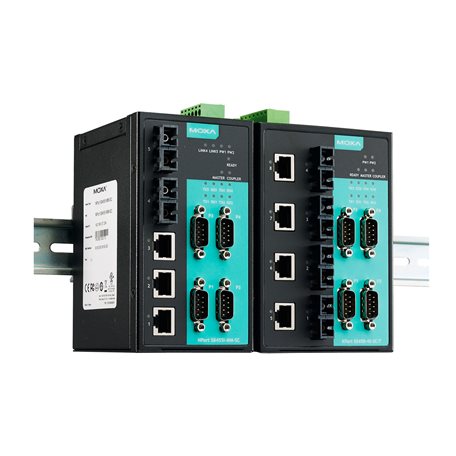

Moxa NPort S8455I-MM-SC | NPort S8455I 4-Port Serial Device Server, 2x MM SC

Authorised Moxa Partner

SKU:NPort S8455I-MM-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort S8455I-MM-SC is a 4-port RS-232/422/485 serial device server with a built-in managed Ethernet switch, built for industrial networks. It provides 3 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX multi-mode SC fiber ports, so serial equipment and Ethernet devices can be connected through a single DIN-rail unit rated for 0 to 60 °C operation.

Redundant 12-48 VDC power inputs, two alarm contact channels and two digital inputs support dependable deployment on the plant floor. Ethernet redundancy through Turbo Ring, Turbo Chain and RSTP/STP, along with Serial QoS for prioritising serial data transmission, helps keep legacy serial devices connected on modern IP networks.

Features

- Built-in managed Ethernet switch
- Serial QoS for configuring serial data transmission priority
- Ethernet redundancy with Turbo Ring, Turbo Chain and RSTP/STP
- Redundant dual power inputs
- Combined serial device server and switch design simplifies device networks

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports (DB9)
- 3 x 10/100BaseT(X) RJ45 Ethernet ports
- 2 x 100BaseFX multi-mode SC fiber ports
- 12-48 VDC redundant power inputs
- Operating temperature 0 to 60 °C
- 2 alarm contact channels (resistive load, 1 A @ 24 VDC)
- 2 digital input channels
- DIN-rail mounting

FAQs

Q: How many serial ports does the NPort S8455I-MM-SC have?
A: It has 4 serial ports supporting RS-232, RS-422 and RS-485 on DB9 connectors.

Q: What Ethernet connections does this model provide?
A: It provides 3 x 10/100BaseT(X) RJ45 copper ports and 2 x 100BaseFX multi-mode SC fiber ports.

Q: Does it include a built-in Ethernet switch?
A: Yes. The NPort S8455I-MM-SC combines a serial device server with a managed Ethernet switch, which reduces the need for a separate switch in the cabinet.

Q: What Ethernet redundancy options are supported?
A: It supports Turbo Ring, Turbo Chain and RSTP/STP for redundant Ethernet topologies.

Q: What power input does it use?
A: It accepts 12-48 VDC and has redundant dual power inputs.

Q: What is the operating temperature range?
A: This standard-temperature model operates from 0 to 60 °C and mounts on a DIN rail.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
