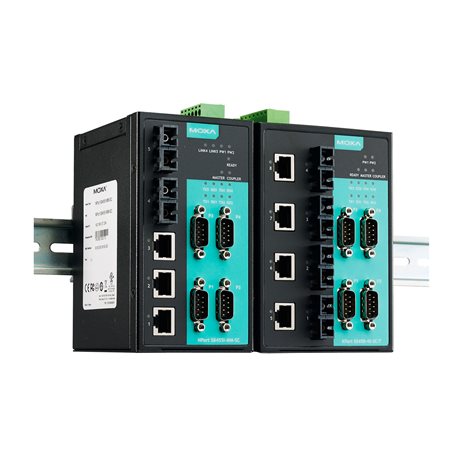

The Moxa NPort S8455I is an industrial serial device server with four RS-232/422/485 serial ports and a built-in managed Ethernet switch with five 10/100BaseT(X) copper ports. It connects existing serial devices to an Ethernet network with only basic configuration, and provides 2 kV isolation protection on each serial port. This standard-temperature model operates from 0 to 60°C on a 12 to 48 VDC power input.

The adjustable pull high/low resistor on the RS-485 ports and Serial QoS for prioritising serial data transmission make it well suited to industrial automation and field deployments where reliable serial-to-Ethernet connectivity is required. The all-copper five-port Ethernet switch allows daisy-chaining and local device connections without an additional switch.

Features

- Serial QoS for configuring serial data transmission priority
- 2 kV isolation protection for each serial port
- Adjustable pull high/low resistor for RS-485 ports
- Built-in managed Ethernet switch
- Needs only basic configuration to network existing serial devices

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports (DB9 male)
- 5 x 10/100BaseT(X) Ethernet ports (all-copper)
- 12 to 48 VDC power input
- 2 kV isolation protection on each serial port
- Operating temperature 0 to 60°C (standard-temperature model)

FAQs

Q: How many serial ports does the Moxa NPort S8455I have?
A: It has four serial ports (DB9 male) that can each be configured for RS-232, RS-422 or RS-485.

Q: Does the NPort S8455I include an Ethernet switch?
A: Yes. It includes a built-in managed Ethernet switch with five 10/100BaseT(X) copper ports.

Q: What isolation protection do the serial ports provide?
A: Each serial port has 2 kV isolation protection, which helps protect equipment in electrically noisy industrial environments.

Q: What is the operating temperature range of this model?
A: This standard-temperature model operates from 0 to 60°C. A wide-temperature variant is available for -40 to 75°C environments.

Q: What power input does the NPort S8455I require?
A: It accepts a 12 to 48 VDC power input.

Q: Can the RS-485 ports be tuned for different cable lengths and devices?
A: Yes. The RS-485 ports offer an adjustable pull high/low resistor, which helps with signal integrity on longer or more complex serial runs.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
