Moxa

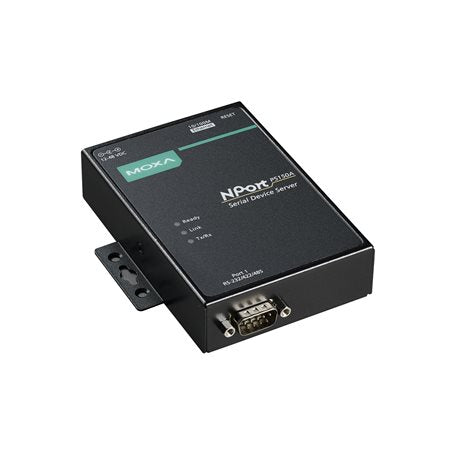

Moxa NPort P5150A-T | NPort P5150A Serial Device Server, 1-Port RS-232/422/485, -40 to 75°C, PoE

Moxa NPort P5150A-T | NPort P5150A Serial Device Server, 1-Port RS-232/422/485, -40 to 75°C, PoE

Authorised Moxa Partner

NPort P5150A-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort P5150A-T is a 1-port RS-232/422/485 PoE serial device server that connects serial devices to an Ethernet network. This -T variant is rated for wide-temperature operation from -40 to 75°C, making it suited to industrial cabinets, outdoor enclosures and other demanding edge connectivity deployments.

The device is an IEEE 802.3af PoE powered device, so it can be powered through the Ethernet cable, or alternatively from a 12 to 48 VDC power input jack. Real COM and TTY drivers for Windows, Linux and macOS, along with TCP Server, TCP Client, UDP, RFC2217 and other operation modes, let it integrate with a wide range of serial devices and host software. Built-in surge protection on the serial, Ethernet and power interfaces, plus a metal housing, support reliable long-term operation.

Features

- IEEE 802.3af-compliant PoE powered device
- Speedy 3-step web-based configuration
- Surge protection for serial, Ethernet and power
- COM port grouping and UDP multicast applications
- Screw-type power connectors for secure installation
- Real COM and TTY drivers for Windows, Linux and macOS
- Standard TCP/IP interface with versatile TCP and UDP operation modes
- Wide-temperature -40 to 75°C operation

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x serial port, DB9 male, RS-232/422/485
- 1 x 10/100BaseT(X) Ethernet port, RJ45, auto MDI/MDIX
- 1.5 kV built-in magnetic isolation on Ethernet
- IEEE 802.3af PoE powered device (48 VDC via PoE), or 12 to 48 VDC via power input jack
- Input current: 125 mA @ 12 VDC (DC jack), 180 mA @ 48 VDC (PoE)
- Baudrates 50 bps to 921.6 kbps
- Data bits 5/6/7/8; stop bits 1/1.5/2; parity None/Even/Odd/Space/Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- RS-485 ADDC (automatic data direction control); pull high/low resistor 1 kΩ / 150 kΩ
- Serial line protection: 15 kV ESD, Level 2 surge (EN 61000-4-5)
- Operation modes: Real COM, Reverse Telnet, RFC2217, TCP Server, TCP Client, UDP, Pair Connection, Ethernet Modem
- Metal housing; 77 x 111 x 26 mm without ears, 100 x 111 x 26 mm with ears
- Weight 300 g
- Operating temperature -40 to 75°C
- Built-in watchdog timer (WDT)

FAQs

Q: What serial interfaces does the NPort P5150A-T support?
A: It has one DB9 male serial port that supports RS-232, RS-422 and RS-485, with baudrates from 50 bps to 921.6 kbps.

Q: How is the NPort P5150A-T powered?
A: It can be powered over Ethernet as an IEEE 802.3af PoE powered device, or from a 12 to 48 VDC supply via the power input jack.

Q: What is the difference between the NPort P5150A-T and the standard NPort P5150A?
A: The -T variant is rated for wide-temperature operation from -40 to 75°C, suiting harsher industrial environments.

Q: Which operating systems are supported by the drivers?
A: Real COM and TTY drivers are available for Windows, Linux and macOS. Standard TCP/IP modes such as TCP Server, TCP Client and UDP also allow use with custom software.

Q: What operation modes does it support?
A: Real COM, Reverse Telnet, RFC2217, TCP Server, TCP Client, UDP, Pair Connection and Ethernet Modem modes.

Q: Does it include surge protection?
A: Yes. It provides 15 kV ESD and Level 2 surge protection (EN 61000-4-5) on the serial line, with additional surge protection for Ethernet and power.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
