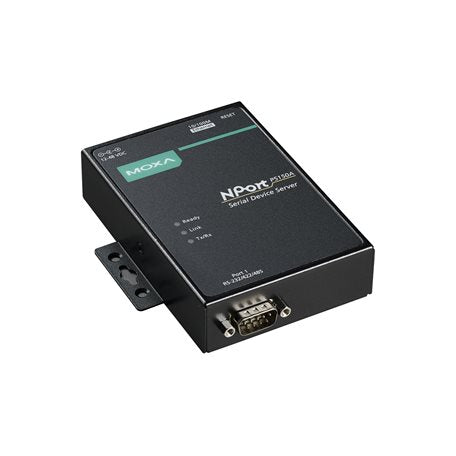

• Moxa NPort P5150A 1-port RS232/422/485 PoE serial device server rear view
1 1

Moxa

Moxa NPort P5150A | 1-Port RS-232/422/485 PoE Serial Device Server, 0-60C

Moxa NPort P5150A | 1-Port RS-232/422/485 PoE Serial Device Server, 0-60C

Authorised Moxa Partner

NPort P5150A

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort P5150A is a compact 1-port RS-232/422/485 PoE serial device server that makes serial devices network-ready over 10/100 Ethernet. This standard temperature model operates from 0 to 60°C, and it can be powered by an IEEE 802.3af PoE source or a 12-48 VDC adapter, which simplifies installation where mains power is hard to reach.

Built-in surge protection on the serial, Ethernet and power lines helps protect connected equipment in industrial environments. Real COM and TTY drivers for Windows, Linux and macOS, plus flexible TCP and UDP operation modes, allow legacy serial devices to be integrated into existing network and SCADA setups without changing the attached equipment.

Features

- IEEE 802.3af-compliant PoE powered device
- Speedy 3-step web-based configuration
- Surge protection for serial, Ethernet and power
- COM port grouping and UDP multicast applications
- Screw-type power connectors for secure installation
- Real COM/TTY drivers for Windows, Linux and macOS
- Standard TCP/IP interface with versatile TCP and UDP operation modes
- Configuration via web console (HTTP/HTTPS), Windows utility, Device Search Utility, Telnet and serial console
- Management protocols include SNMPv1/v2c, DHCP, DNS, LLDP, SMTP and HTTPS

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port (DB9 male)
- 1 x 10/100BaseT(X) Ethernet port (RJ45) with 1.5 kV magnetic isolation
- Baudrate: 50 bps to 921.6 kbps
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- Automatic Data Direction Control (ADDC) for RS-485
- RS-485 pull high/low resistor: 1 kΩ or 150 kΩ
- Power input: IEEE 802.3af PoE (48 VDC) or 12-48 VDC via power jack (adapter sold separately)
- Input current: 125 mA @ 12 VDC (DC jack); 180 mA @ 48 VDC (PoE)
- Operating temperature: 0 to 60°C
- Built-in watchdog timer (WDT)
- Surge protection: IEC 61000-4-5, 2 kV on power and 1 kV on signal
- ESD: IEC 61000-4-2, 4 kV contact / 8 kV air
- Safety: EN 62368-1, UL 60950-1
- MTBF: 2,231,530 hrs (Telcordia)

FAQs

Q: How is the Moxa NPort P5150A powered?
A: It can be powered by an IEEE 802.3af PoE source or by a 12-48 VDC power jack. The DC adapter is sold separately.

Q: Which serial interfaces does the NPort P5150A support?
A: It has one DB9 male serial port that supports RS-232, RS-422 and RS-485, with baudrates from 50 bps to 921.6 kbps.

Q: What operating temperature range does this model support?
A: This standard model operates from 0 to 60°C. The -T variant is the wide-temperature option, rated for -40 to 75°C.

Q: Which operating systems are supported by the drivers?
A: Real COM and TTY drivers are available for Windows, Linux and macOS, so existing serial software can talk to the device over the network.

Q: What surge and ESD protection is built in?
A: It provides surge protection on the serial, Ethernet and power lines (IEC 61000-4-5, 2 kV on power and 1 kV on signal) and ESD protection to IEC 61000-4-2 at 4 kV contact and 8 kV air.

Q: How is the device configured?
A: Configuration is available through a web console (HTTP/HTTPS), a Windows utility, the Device Search Utility, Telnet or the serial console.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
