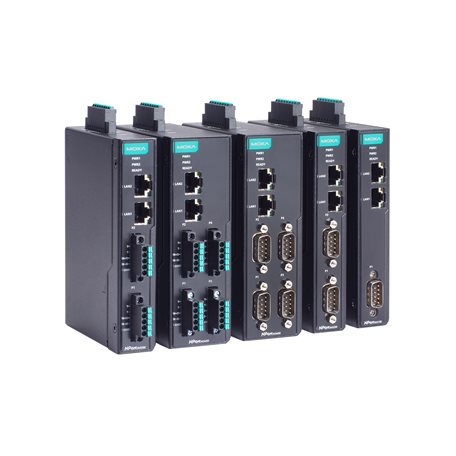

• Moxa NPort IA5450I-TB-G2 Gen 2 serial device server with black switches and teal ports
1 1

Moxa

Moxa NPort IA5450I-TB-G2 | NPort IA5000-G2 4-Port RS-232/422/485 Serial Device Server

Moxa NPort IA5450I-TB-G2 | NPort IA5000-G2 4-Port RS-232/422/485 Serial Device Server

Authorised Moxa Partner

NPort IA5450I-TB-G2

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort IA5450I-TB-G2 is a 4-port RS-232/422/485 industrial serial device server that connects serial devices to an IP network. This 4-port model features 5-pin terminal block serial connectors, 2 kV serial isolation and a standard operating temperature range of -10 to 60°C, making it well suited to DIN-rail installations in factory automation, building management and utility environments.

Part of the 2nd generation NPort IA5000-G2 series, it provides dual 10/100 Mbps Ethernet RJ45 ports for daisy-chain or redundant connectivity, with secure operating modes such as Secure Real COM, Secure TCP Server and Reverse SSH. Windows Real COM drivers and a range of management tools simplify deployment, and hazardous location approvals (ATEX, Class I Division 2, IECEx) support use in demanding sites.

Features

- Standard modes: Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217, Pair Connection
- Secure modes: Secure Real COM, Secure TCP Server, Secure TCP Client, Reverse SSH, Secure Pair Connection
- Management protocols include SNMPv1/v2c/v3, DHCP, DNS, LLDP, SMTP/SMTPS, SNTP and HTTPS
- Windows Real COM drivers
- Hazardous location approvals: ATEX, Class I Division 2, IECEx
- Dual Ethernet ports for daisy-chain or redundant connectivity

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports (software-selectable)
- Serial connectors: 4 x 5-pin terminal block
- 2 x 10/100BaseT(X) RJ45 Ethernet ports (Auto MDI/MDI-X)
- Ethernet magnetic isolation protection: 1.5 kV (built-in)
- 2 kV serial isolation
- Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
- Data bits: 5, 6, 7, 8; Stop bits: 1, 1.5, 2; Parity: None, Even, Odd, Space, Mark
- Power input: 12 to 48 VDC
- Operating temperature: -10 to 60°C
- Security protocols: HTTPS (TLS 1.2), SNMPv3, SSHv2
- Configuration: Web Console (HTTP/HTTPS), Device Search Utility (DSU), MCC Tool, Serial Console

FAQs

Q: What serial interfaces does the NPort IA5450I-TB-G2 support?
A: Each of the 4 serial ports is software-selectable between RS-232, RS-422 and RS-485.

Q: What type of serial connector does it use?
A: It uses 4 x 5-pin terminal block connectors for the serial ports.

Q: Does this model provide serial isolation?
A: Yes. The I model provides 2 kV serial isolation, and the Ethernet ports include 1.5 kV built-in magnetic isolation.

Q: What operating modes are available?
A: Standard modes include Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217 and Pair Connection. Secure modes include Secure Real COM, Secure TCP Server, Secure TCP Client, Reverse SSH and Secure Pair Connection.

Q: What power input does it require?
A: It accepts a 12 to 48 VDC power input.

Q: Can the two Ethernet ports be used for daisy-chaining?
A: Yes. The dual 10/100 Mbps RJ45 Ethernet ports support daisy-chain or redundant connectivity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
