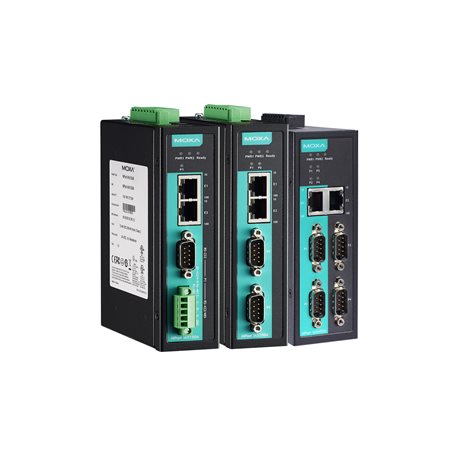

Moxa NPort IA5450A-T | 4-Port RS-232/422/485 Device Server

Authorised Moxa Partner

SKU:NPort IA5450A-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort IA5450A-T is a 4-port RS-232/422/485 serial device server for industrial automation, connecting serial devices to Ethernet networks through DB9 male ports with no serial isolation. This wide-temperature model operates from -40 to 75°C and offers serial, LAN and power surge protection, making it well suited to harsh factory floors, outdoor cabinets and hazardous locations.

Two 10/100BaseT(X) RJ45 Ethernet ports share a single IP address, and dual 12 to 48 VDC power inputs support redundant power. A metal housing with DIN-rail mounting suits control cabinets, and ATEX Zone 2, UL/cUL Class I Division 2 and IECEx certifications cover hazardous environments. Real COM, Reverse Telnet, TCP, UDP and RFC2217 operation modes ease integration with existing serial software, while HTTPS, SNMPv3 and AES-128 add security.

Features

- Serial, LAN and power surge protection
- Two 10/100BaseT(X) Ethernet ports with a single IP address
- Supports RS-232, RS-422 and RS-485 on each serial port
- Dual 12 to 48 VDC power inputs for redundancy
- Wide -40 to 75°C operating temperature for harsh environments
- Hazardous location certifications (ATEX Zone 2, Class I Div 2, IECEx)
- Real COM, TTY, Reverse Telnet, TCP and UDP operation modes
- HTTPS, SNMPv3 and AES-128 security functions
- Metal housing with DIN-rail mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports, DB9 male
- 2 x 10/100BaseT(X) RJ45 Ethernet ports (single IP)
- Serial/LAN/power surge protection
- Baudrate: 50 bps to 921.6 kbps
- Input voltage: 12 to 48 VDC, 2 power inputs, terminal block
- Operating temperature: -40 to 75°C
- Metal housing, DIN-rail mounting, wall mounting with optional kit
- Dimensions: 45.8 x 134 x 105 mm
- Weight: 560 g
- Certifications: ATEX Zone 2, UL/cUL Class I Division 2, IECEx

FAQs

Q: How many serial ports does the NPort IA5450A-T have?
A: It has 4 serial ports with DB9 male connectors, each software-selectable for RS-232, RS-422 or RS-485.

Q: What operating temperature range does this model support?
A: The T variant operates from -40 to 75°C, suiting harsh industrial and outdoor cabinet installations.

Q: Does this model provide serial port isolation?
A: No, this variant has no serial isolation. It does include serial, LAN and power surge protection, with 1.5 kV magnetic isolation on the Ethernet ports.

Q: Can it be used in hazardous locations?
A: Yes. It carries ATEX Zone 2, UL/cUL Class I Division 2 Groups A/B/C/D and IECEx certifications.

Q: What power input does it require?
A: It accepts 12 to 48 VDC through two terminal block power inputs, allowing redundant power supplies.

Q: Which operation modes are supported?
A: Real COM, Reverse Telnet, TCP Server, TCP Client, UDP, Pair Connection, Ethernet Modem and RFC2217 modes are supported.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
