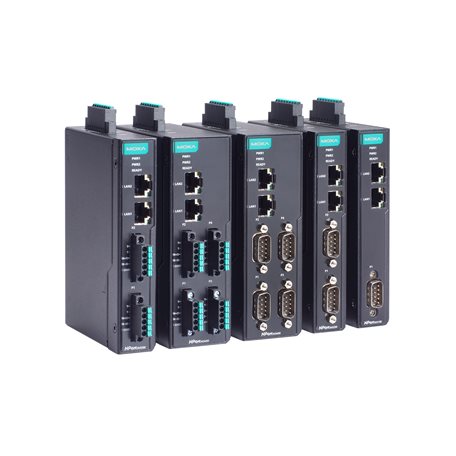

Moxa NPort IA5450-G2-T | 4-Port RS-232/422/485 Serial Device Server, DB9, -40 to 75°C

Authorised Moxa Partner

SKU:NPort IA5450-G2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort IA5450-G2-T is a 4-port RS-232/422/485 serial device server for industrial automation, connecting serial devices to Ethernet networks. This wide-temperature model has four software-selectable DB9 male serial ports, two 10/100 RJ45 Ethernet ports and an operating range of -40 to 75°C, suited to harsh DIN-rail installations.

The metal IP30 housing, dual 12 to 48 VDC power inputs with relay output, and 1.5 kV magnetic isolation on the Ethernet ports support dependable deployment in factory, energy and marine environments. Secure operation modes, HTTPS, SNMPv3 and SSHv2 help protect serial data, while drivers for Windows 11, Linux and macOS ease integration.

Features

- DSU-G2 utility for quick Real COM mode setup
- Two Ethernet ports with the same IP or dual IP addresses for network redundancy
- Cascading Ethernet ports for simple wiring
- Supports nonstandard baudrates with high precision
- Data encryption in secure modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal and Reverse Terminal
- Advanced surge protection compliant with IEC 61000-4-5
- Drivers for Windows 11, Linux kernels 4.x/5.x/6.x, macOS 11-14, fixed TTY and Arm-based platforms

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports, software-selectable
- 4 x DB9 male serial connectors
- 2 x 10/100BaseT(X) RJ45 Ethernet ports, Auto MDI/MDI-X
- 1.5 kV built-in magnetic isolation on Ethernet ports
- Operating temperature -40 to 75°C
- Power input 12 to 48 VDC, 583 mA max. at 75°C
- 8-pin terminal block power connector with dual power inputs and relay output
- Metal housing, IP30
- Dimensions 42 x 89 x 129 mm
- Weight 512 g
- Operation modes: Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217, Pair Connection
- Security: HTTPS (TLS 1.2), SNMPv3, SSHv2
- Certifications include ATEX, Class I Division 2, IECEx and DNV maritime (24 VDC)

FAQs

Q: What serial interfaces does the NPort IA5450-G2-T support?
A: It provides four software-selectable RS-232, RS-422 and RS-485 ports on DB9 male connectors.

Q: What is the operating temperature range?
A: The -T wide-temperature model operates from -40 to 75°C.

Q: Can it provide network redundancy?
A: Yes. The two RJ45 Ethernet ports can share the same IP address or use dual IP addresses, and they can be cascaded for easier wiring.

Q: How is the device powered?
A: It accepts 12 to 48 VDC through an 8-pin terminal block with dual power inputs and a relay output.

Q: Which operating modes and security options are available?
A: Modes include Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217 and Pair Connection. Security options include HTTPS (TLS 1.2), SNMPv3 and SSHv2.

Q: Which operating systems have drivers available?
A: Drivers are available for Windows 11, Linux kernels 4.x/5.x/6.x, macOS 11-14, fixed TTY and Arm-based platforms.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
