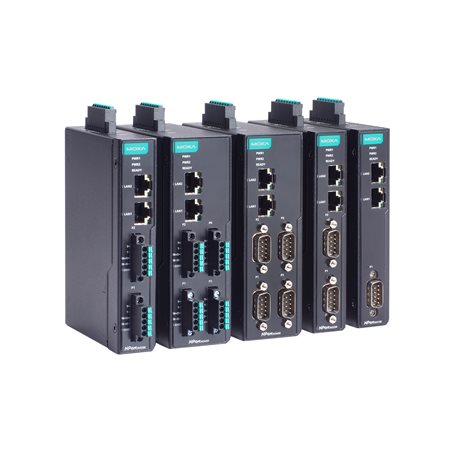

Moxa NPort IA5250I-TB-G2-T | NPort IA5250I G2 2-Port Serial Device Server, TB, 2 kV, -40 to 75C

Authorised Moxa Partner

SKU:NPort IA5250I-TB-G2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort IA5250I-TB-G2-T is a 2-port industrial serial device server that connects RS-232/422/485 serial devices to Ethernet. This terminal block model has 5-pin terminal block serial connectors, 2 kV isolation and a -40 to 75°C wide-temperature rating, making it well suited to harsh industrial cabinets, factory automation and remote monitoring sites.

Two 10/100 Ethernet ports can be cascaded for simple wiring or used with dual IP addresses for network redundancy. Redundant 12 to 48 VDC power inputs, a rugged IP30 metal housing and DIN-rail mounting make installation straightforward, while HTTPS, SNMPv3 and SSHv2 support secure remote management.

Features

- Real COM mode setup in about 30 seconds with the DSU-G2 utility
- Two Ethernet ports with the same IP or dual IP addresses for network redundancy
- Cascading Ethernet ports for easy wiring
- Supports nonstandard baudrates with high precision
- Data encryption with secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal and Reverse Terminal
- One-click diagnostics and log collection for troubleshooting
- Embedded traffic monitoring for advanced data analysis
- Full surge protection in a solid metal housing with screw-type connectors

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports, software-selectable
- Serial connector: 5-pin terminal block
- 2 x 10/100BaseT(X) RJ45 Ethernet ports, auto MDI/MDI-X
- Isolation: 2 kV
- Power input: 12 to 48 VDC, dual redundant inputs
- Operating temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- Housing: metal, IP30
- Mounting: DIN-rail
- Security: HTTPS (TLS 1.2), SNMPv1/v2c/v3, SSHv2
- IEC 62443-4-2 compliant
- Surge protection: IEC 61000-4-5 on serial, Ethernet and power lines
- Operating modes: Real COM, TCP Server, TCP Client, UDP, Pair Connection, Terminal, Reverse Terminal, RFC 2217

FAQs

Q: What serial interfaces does the NPort IA5250I-TB-G2-T support?
A: It has two serial ports that support RS-232, RS-422 and RS-485, selectable in software. The ports use 5-pin terminal block connectors.

Q: What temperature range can it operate in?
A: This is the wide-temperature T model, rated for operation from -40 to 75°C.

Q: How is it powered?
A: It has dual redundant power inputs accepting 12 to 48 VDC.

Q: Can the two Ethernet ports be used for redundancy?
A: Yes. The two 10/100 Ethernet ports can be cascaded for simple wiring, or configured with dual IP addresses for network redundancy.

Q: What security features are supported?
A: It supports HTTPS (TLS 1.2), SNMPv3 and SSHv2, and is IEC 62443-4-2 compliant. Encrypted operation is available in the Real COM, TCP Server, TCP Client, Pair Connection, Terminal and Reverse Terminal modes.

Q: How does it mount?
A: It is DIN-rail mountable and housed in an IP30 rated metal enclosure.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
