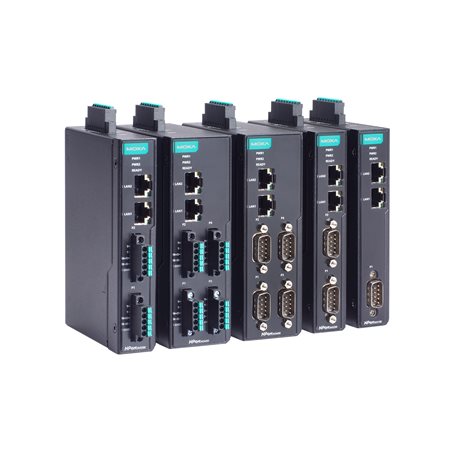

Moxa NPort IA5250I-TB-G2 | 2-Port Serial Device Server, 2 kV Isolation, -10 to 60°C

Authorised Moxa Partner

SKU:NPort IA5250I-TB-G2

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort IA5250I-TB-G2 is a 2-port DIN-rail serial device server that connects RS-232/422/485 serial devices to Ethernet networks. This terminal block variant provides 2 kV isolation protection on the serial ports and operates across a -10 to 60°C temperature range, making it suited to industrial automation, factory floor and utility deployments where legacy serial equipment must be brought onto an IP network.

Dual 10/100BaseT(X) Ethernet ports can be cascaded for simple daisy-chain wiring or configured with the same IP or dual IP addresses for network redundancy. Security features aligned to IEC 62443-4-2 Security Level 2, including HTTPS (TLS 1.2), SNMPv3 and SSHv2, help protect serial data in transit. The IP30-rated metal housing supports DIN-rail and wall mounting.

Features

- Quick Real COM mode setup with DSU-G2
- Two Ethernet ports with the same IP or dual IP addresses for network redundancy
- Cascading Ethernet ports for easy wiring
- Supports nonstandard baudrates with high precision
- Data encryption with secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal and Reverse Terminal
- One-click diagnostics for troubleshooting
- Embedded traffic monitoring for data analysis
- Compliance with IEC 62443-4-2 Security Level 2 requirements
- Series-level certifications: DNV, CID2, ATEX Zone 2, IECEx

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) Ethernet ports (RJ45), cascadable as switch ports
- 2 x RS-232/422/485 serial ports, software-selectable
- Terminal block serial connectors
- 2 kV isolation protection for serial ports
- 12 to 48 VDC input power range
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- IP30-rated metal housing
- DIN-rail and wall mounting
- Security protocols: HTTPS (TLS 1.2), SNMPv3, SSHv2

FAQs

Q: Which serial interfaces does the NPort IA5250I-TB-G2 support?
A: It has 2 serial ports that are software-selectable between RS-232, RS-422 and RS-485, with terminal block connectors.

Q: What isolation protection do the serial ports offer?
A: The serial ports provide 2 kV isolation protection, which helps protect equipment in electrically noisy industrial environments.

Q: Can the two Ethernet ports be used for redundancy?
A: Yes. The two 10/100BaseT(X) ports can share the same IP address or use dual IP addresses for network redundancy, and they can also be cascaded to simplify wiring.

Q: What operating temperature range does this model support?
A: The NPort IA5250I-TB-G2 operates from -10 to 60°C and can be stored from -40 to 85°C.

Q: What power input does it require?
A: It accepts a 12 to 48 VDC input power range.

Q: How is the NPort IA5250I-TB-G2 mounted and secured?
A: It uses an IP30-rated metal housing with DIN-rail and wall mounting options. Security is supported through HTTPS (TLS 1.2), SNMPv3 and SSHv2, with encrypted secure operation modes for serial data.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
