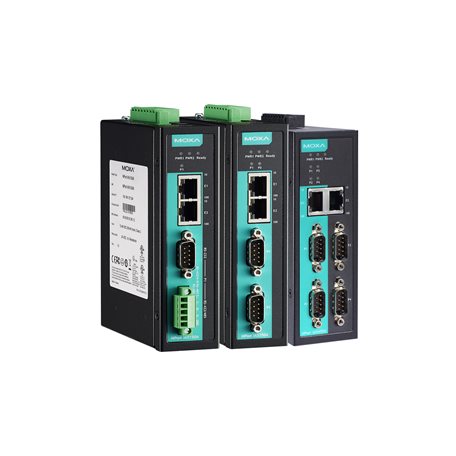

Moxa NPort IA5250A-T | 2-Port RS-232/422/485 Serial Device Server, -40 to 75C

Authorised Moxa Partner

SKU:NPort IA5250A-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort IA5250A-T is a 2-port RS-232/422/485 industrial serial device server that connects serial equipment to an Ethernet network. This -T model is built for harsh environments with a wide -40 to 75 C operating temperature range and non-isolated serial ports, and it includes surge protection for serial, LAN and power connections.

Two 10/100BaseT(X) RJ45 Ethernet ports can share a single IP address or run on dual IP addresses for network redundancy, and they can be cascaded for simple wiring. Redundant 12-48 VDC power inputs, screw-type terminal blocks and a relay output with email alerts suit industrial automation, with C1D2 and ATEX hazardous location ratings and a wide set of operation modes including TCP Server, TCP Client, UDP, Real COM and Reverse Telnet.

Features

- Two Ethernet ports with the same IP or dual IP addresses for network redundancy
- Cascading Ethernet ports for easy wiring
- Enhanced surge protection for serial, LAN and power
- Screw-type terminal blocks for secure power and serial connections
- Redundant DC power inputs
- Warnings and alerts by relay output and email
- C1D2, ATEX and IECEx certified for harsh industrial environments
- 40 to 75 C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports
- 2 x 10/100BaseT(X) Ethernet ports (RJ45, single IP or dual IP)
- Operating temperature: -40 to 75 C
- Power input: 12 to 48 VDC, redundant inputs
- Relay output with email alerts
- Surge protection for serial, LAN and power
- Safety: UL 508
- Hazardous locations: C1D2, ATEX
- Protection rating: IP30
- Supported protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, Rtelnet, DNS, HTTP, SMTP, SNTP, IGMP
- Operation modes: TCP Server, TCP Client, UDP, Real COM, RFC2217, Reverse Telnet, Pair Connection, Ethernet Modem
- Dimensions (W x D x H): 36 x 105 x 140 mm
- Weight: 485 g

FAQs

Q: What serial interfaces does the NPort IA5250A-T support?
A: It has two serial ports, each supporting RS-232, RS-422 and RS-485.

Q: What is the operating temperature range?
A: The -T model operates from -40 to 75 C, suited to harsh and outdoor industrial cabinets.

Q: Can the two Ethernet ports be used for redundancy?
A: Yes. The two 10/100BaseT(X) ports can share a single IP address or use dual IP addresses for network redundancy, and they can be cascaded.

Q: What power input does it use?
A: It accepts 12 to 48 VDC and has redundant DC power inputs.

Q: Which operation modes are available?
A: TCP Server, TCP Client, UDP, Real COM, RFC2217, Reverse Telnet, Pair Connection and Ethernet Modem.

Q: Is it suitable for hazardous locations?
A: It carries C1D2 and ATEX ratings for hazardous locations and is UL 508 listed.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
