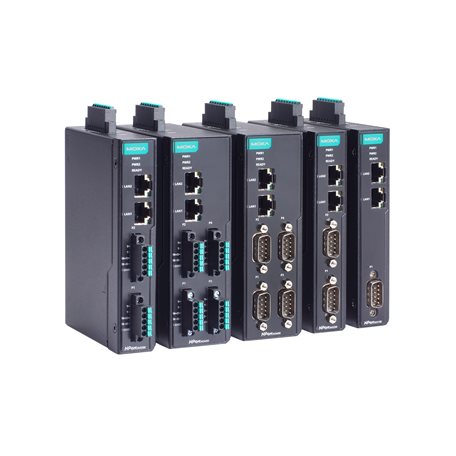

• Moxa NPort IA5250-TB-G2 black switch with teal ports, 2 RJ45 2 RS
1 1

Moxa

Moxa NPort IA5250-TB-G2 | 2-Port RS-232/422/485 Serial Device Server, Terminal Block

Moxa NPort IA5250-TB-G2 | 2-Port RS-232/422/485 Serial Device Server, Terminal Block

Authorised Moxa Partner

NPort IA5250-TB-G2

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort IA5250-TB-G2 is a 2-port industrial serial device server that connects RS-232/422/485 serial devices such as PLCs, meters and sensors to an Ethernet network. Each serial port is software-selectable and uses a 5-pin terminal block connector. This non-isolated model is rated for -10 to 60°C operation and is housed in a rugged IP30 metal case for DIN-rail mounting.

Two 10/100BaseT(X) RJ45 Ethernet ports allow cascading for simpler wiring, or can be configured with the same IP or dual IP addresses for network redundancy. Operation modes include Real COM, TCP Server, TCP Client, UDP, Reverse Terminal and RFC2217, with secure modes available using encryption. Surge protection is built in on the serial, Ethernet and power lines, and a relay output supports email alerts for network down, power failure or DCD/DSR signal changes.

Features

- Set up classic Real COM mode in about 30 seconds with DSU-G2
- Two Ethernet ports with cascading for easy wiring
- Same IP or dual IP addresses for network redundancy
- High-precision support for non-standard baudrates
- Secure operation modes with data encryption
- One-click diagnostics and log collection for troubleshooting
- Embedded traffic monitoring
- Built-in relay output with email alerts for network down, power failure or DCD/DSR changes
- Surge protection (IEC 61000-4-5) on serial, Ethernet and power lines
- Compliance with IEC 62443-4-2 Security Level 2 requirements

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports, software-selectable
- 2 x 5-pin terminal block serial connectors
- Serial isolation: none (non-isolated)
- 2 x 10/100BaseT(X) RJ45 Ethernet ports, auto MDI/MDI-X, 1.5 kV magnetic isolation
- Baudrate: 50 bps to 921.6 kbps, supports non-standard baudrates
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, RTS Toggle, XON/XOFF
- RS-485 data direction control: ADDC
- Software-configurable RS-485 pull high/low resistors and 120 ohm terminator
- Operation modes: Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217, Pair Connection
- Secure modes: Secure Real COM, Secure TCP Server, Secure TCP Client, Reverse SSH, Secure Pair Connection
- Security protocols: HTTPS (TLS 1.2), SNMPv3, SSHv2
- Input voltage: 12 to 48 VDC, 452 mA max., 8-pin terminal block power connector
- Relay output: resistive load 1 A @ 30 VAC
- Metal housing, IP30, DIN-rail mount
- Operating temperature: -10 to 60°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- MTBF: 2,943,248 hours (Telcordia SR-332)
- Safety: IEC 62368-1, UL 62368-1, EN 62368-1
- EMI: CISPR 32, FCC Part 15B Class A

FAQs

Q: Which serial standards does the NPort IA5250-TB-G2 support?
A: Each of the two serial ports supports RS-232, RS-422 and RS-485, selectable in software.

Q: Are the serial ports isolated?
A: No. This model has non-isolated serial ports. Serial isolation is only offered on the I model variants.

Q: How do the serial devices connect?
A: Each serial port uses a 5-pin screw-type terminal block connector, so no DB9 adapters are needed.

Q: Can the two Ethernet ports be used for redundancy or daisy-chaining?
A: Yes. The two RJ45 ports can be cascaded to simplify wiring, or configured with the same IP or dual IP addresses for network redundancy.

Q: What power supply does it need?
A: It accepts 12 to 48 VDC through an 8-pin terminal block, drawing up to 452 mA.

Q: What is the operating temperature range?
A: This standard-temperature model operates from -10 to 60°C. It is housed in a metal IP30 case and mounts on a DIN rail.
