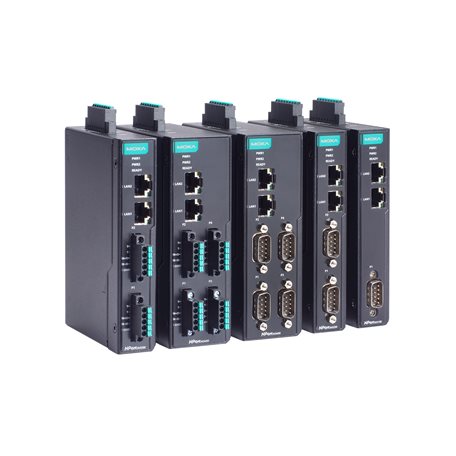

Moxa NPort IA5250-G2-T | 2-Port RS-232/422/485 Device Server, -40 to 75°C

Authorised Moxa Partner

SKU:NPort IA5250-G2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort IA5250-G2-T is a 2-port RS-232/422/485 industrial serial device server that connects serial equipment to Ethernet networks. This wide-temperature -T model operates from -40 to 75°C and provides two DB9 male serial ports, dual 10/100BaseT(X) RJ45 Ethernet ports for daisy-chain topologies, and 1.5 kV built-in magnetic isolation on the Ethernet interface.

Built on the second-generation NPort IA5000-G2 platform, it includes a Root of Trust with Secure Boot and a True Random Number Generator, along with secure operation modes such as Secure Real COM, Secure TCP Server, Secure TCP Client, Reverse SSH and Secure Pair Connect. Driver support covers Windows 11, Linux kernels 6.x, 5.x and 4.x, macOS 11 to 14, fixed TTY and Arm-based platforms, and it mounts on a DIN rail for cabinet installation.

Features

- Root of Trust with Secure Boot and True Random Number Generator (TRNG)
- Local database authentication and encryption support
- Dual Ethernet ports for daisy-chain topology
- Secure and standard serial operation modes
- Broad OS driver support including Arm-based platforms and virtual machines

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x serial ports, DB9 male
- RS-232/422/485, software-selectable
- 2 x 10/100BaseT(X) RJ45 Ethernet ports, Auto MDI/MDI-X
- 1.5 kV built-in magnetic isolation on Ethernet
- Operating temperature -40 to 75°C (wide temperature -T model)
- DIN-rail mounting
- Standard modes: Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217, Pair Connection
- Secure modes: Secure Real COM, Secure TCP Server, Secure TCP Client, Reverse SSH, Secure Pair Connect
- Drivers: Windows 11, Linux kernels 6.x/5.x/4.x, macOS 14/13/12/11, fixed TTY, Arm-based platform support

FAQs

Q: What serial interfaces does the NPort IA5250-G2-T support?
A: It provides two DB9 male serial ports that are software-selectable between RS-232, RS-422 and RS-485.

Q: What is the operating temperature range?
A: The -T wide-temperature model operates from -40 to 75°C, suited to harsh industrial environments.

Q: Can I daisy-chain multiple units?
A: Yes. The two 10/100BaseT(X) RJ45 Ethernet ports support daisy-chain topologies, reducing switch port usage and cabling.

Q: Which operation modes are supported?
A: Standard modes include Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217 and Pair Connection. Secure modes include Secure Real COM, Secure TCP Server, Secure TCP Client, Reverse SSH and Secure Pair Connect.

Q: Which operating systems are supported by the drivers?
A: Drivers are available for Windows 11, Linux kernels 6.x, 5.x and 4.x, macOS 14, 13, 12 and 11, fixed TTY, and Arm-based platforms.

Q: How is the unit mounted?
A: It is designed for DIN-rail mounting inside industrial control cabinets.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
