Moxa NPort IA5150I-M-SC-G2-T | Serial Server, RJ45 + MM SC, 2kV, -40 to 75C

Authorised Moxa Partner

SKU:NPort IA5150I-M-SC-G2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

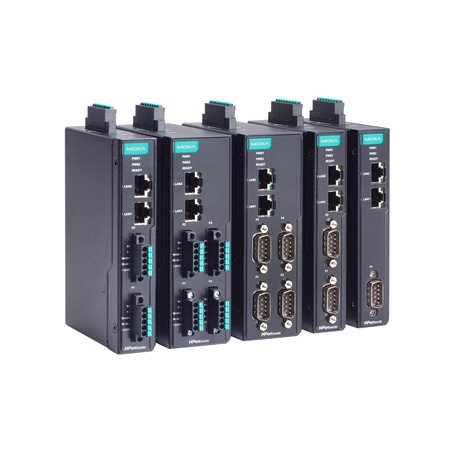

The Moxa NPort IA5150I-M-SC-G2-T is an industrial DIN-rail serial device server that connects one RS-232/422/485 serial device to Ethernet. This variant provides one 10/100 RJ45 port and one 100BaseFX multi-mode SC fibre port, 2 kV isolation protection and an extended -40 to 75°C operating range, making it well suited to factory automation, utilities and harsh outdoor cabinets.

Part of the NPort IA5000-G2 Series, it supports Real COM, TCP Server, TCP Client, Pair Connection, Terminal and Reverse Terminal modes with secure operation using HTTPS (TLS 1.2), SNMPv3 and SSHv2. The metal IP30 housing, 12 to 48 VDC power input and compact 25 x 89 x 129 mm footprint make it straightforward to integrate into existing control panels.

Features

- Fast Real COM mode setup with the DSU-G2 utility
- Two Ethernet ports with the same IP or dual IP addresses for network redundancy
- Cascading Ethernet ports for easy wiring
- Supports non-standard baudrates with high precision
- Data encryption with secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal and Reverse Terminal
- Industrial-grade certifications including Telcordia SR-332 and UL 62368-1

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port, software-selectable, DB9 male
- 2 Ethernet ports: 1 x 10/100 RJ45 and 1 x 100BaseFX multi-mode SC fibre
- 2 kV isolation protection
- Operating temperature -40 to 75°C (wide temperature model)
- Baudrate 50 bps to 921.6 kbps, supports non-standard baudrates
- Power input 12 to 48 VDC
- Metal housing, IP30 rating
- Dimensions 25 x 89 x 129 mm
- Security protocols: HTTPS (TLS 1.2), SNMPv3, SSHv2

FAQs

Q: How many serial ports does the NPort IA5150I-M-SC-G2-T provide?
A: It provides one software-selectable RS-232/422/485 serial port on a DB9 male connector.

Q: What Ethernet connections does this model have?
A: It has two Ethernet ports: one 10/100 RJ45 port and one 100BaseFX multi-mode SC fibre port.

Q: What operating temperature range is supported?
A: This wide temperature model operates from -40 to 75°C, suitable for harsh industrial environments.

Q: What power supply does it need?
A: It accepts a 12 to 48 VDC power input.

Q: Which security protocols are supported?
A: It supports HTTPS (TLS 1.2), SNMPv3 and SSHv2, along with secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal and Reverse Terminal.

Q: How does this model differ from other NPort IA5150 variants?
A: This SKU combines an RJ45 port with a multi-mode SC fibre port, 2 kV isolation and the -40 to 75°C wide temperature rating.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
