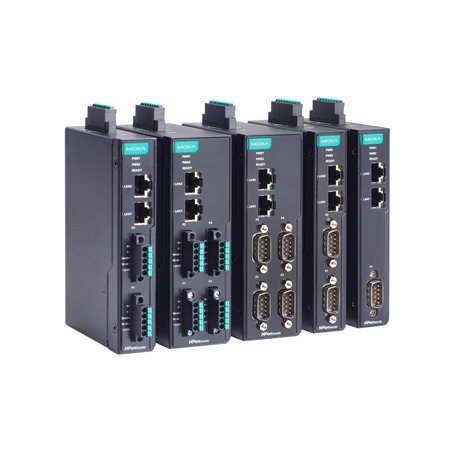

• Moxa NPort IA5150-SFP-G2-T black switch with teal ports, rear view
1 1

Moxa

Moxa NPort IA5150-SFP-G2-T | Serial Device Server, RS-232/422/485, SFP

Moxa NPort IA5150-SFP-G2-T | Serial Device Server, RS-232/422/485, SFP

Authorised Moxa Partner

NPort IA5150-SFP-G2-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort IA5150-SFP-G2-T is a second-generation industrial serial device server that connects one RS-232/422/485 serial device to an Ethernet network. It pairs one 10/100 RJ45 port with one SFP slot for a 100BaseFX fibre link, and as the wide-temperature -T model it is rated for operation from -40 to 75°C, suiting harsh DIN-rail installations.

Built on the NPort IA5000-G2 platform, it adds Secure Boot, a true random number generator, HTTPS with TLS 1.2, SSHv2 and SNMPv3, alongside secure operation modes such as Secure Real COM, Secure TCP Server/Client and Reverse SSH. A metal IP30 housing, redundant 12 to 48 VDC power inputs with a relay output, and hazardous location approvals make it a dependable choice for factory automation, utilities and marine applications.

Features

- Second-generation NPort design with Secure Boot, TRNG, HTTPS (TLS 1.2), SSHv2 and SNMPv3
- Secure operation modes: Secure Real COM, Secure TCP Server, Secure TCP Client, Reverse SSH and Secure Pair Connection
- SFP slot supports 100BaseFX multi-mode or single-mode fibre uplinks alongside an RJ45 port
- Standard modes include Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217 and Pair Connection
- Wide -40 to 75°C operating range for harsh industrial environments
- Redundant DC power inputs and a relay output for alarm signalling
- Real COM/TTY drivers for Windows, Linux and macOS, plus Android API and virtual machine support
- Configure via web console, Device Search Utility, MCC Tool or serial console

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port, software-selectable, DB9 male
- 1 x 10/100BaseT(X) RJ45 port and 1 x 100BaseFX SFP slot
- Serial bitrate 50 bps to 921.6 kbps, supports non-standard baudrates
- Data bits 5 to 8, stop bits 1, 1.5 or 2, parity None/Even/Odd/Space/Mark
- Flow control: None, RTS/CTS, DTR/DSR, RTS Toggle, XON/XOFF
- RS-485 ADDC, software-configurable pull high/low resistors and 120 ohm terminator
- 1.5 kV built-in magnetic isolation protection
- Input voltage 12 to 48 VDC, redundant dual inputs, 8-pin terminal block
- Relay output rated 1 A at 30 VAC resistive load
- Metal housing, IP30, DIN-rail mount
- Dimensions 25 x 89 x 129 mm, weight 384 g
- Operating temperature -40 to 75°C, storage -40 to 85°C
- Humidity 5 to 95% non-condensing
- Approvals: ATEX, Class I Division 2, IECEx, DNV maritime (24 VDC input)
- Safety and EMC: IEC/UL/EN 62368-1, EN 55032/35, FCC Part 15B Class A
- MTBF 3,109,327 hours

FAQs

Q: What serial interfaces does the NPort IA5150-SFP-G2-T support?
A: It has one DB9 male serial port that is software-selectable between RS-232, RS-422 and RS-485, with ADDC for RS-485 direction control.

Q: What network connections does this model provide?
A: It provides one 10/100BaseT(X) RJ45 port and one SFP slot for a 100BaseFX fibre link, suiting installations that need a fibre uplink.

Q: What does the -T suffix mean?
A: The -T denotes the wide-temperature version, rated for operation from -40 to 75°C.

Q: Which security features are included?
A: Secure Boot, a true random number generator, HTTPS with TLS 1.2, SSHv2 and SNMPv3, plus secure operation modes such as Secure Real COM and Reverse SSH.

Q: How is the unit powered?
A: It accepts 12 to 48 VDC on redundant power inputs through an 8-pin terminal block, which also includes a relay contact for alarm output.

Q: Is it approved for hazardous locations?
A: Yes, it carries ATEX, Class I Division 2 and IECEx approvals, and DNV maritime certification with a 24 VDC power input.
