Moxa NPort IA5150-S-SC-G2-T | Serial Server, RJ45 + SC SM Fibre, -40 to 75°C

Authorised Moxa Partner

SKU:NPort IA5150-S-SC-G2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

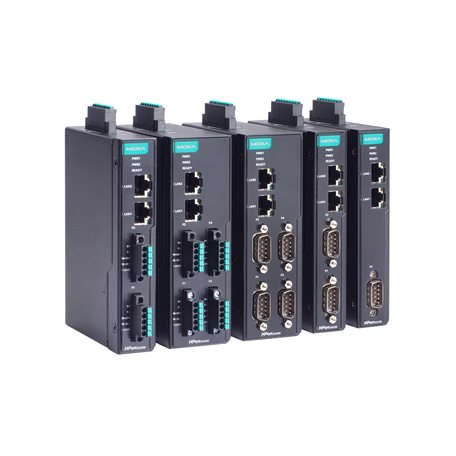

The Moxa NPort IA5150-S-SC-G2-T is a 1-port industrial serial device server that connects RS-232/422/485 serial equipment to an Ethernet network. This variant offers both a 10/100 RJ45 port and a single-mode SC fibre port, giving flexible copper or fibre uplink options, and the -T model is rated for operation from -40 to 75°C in harsh industrial environments.

Secure operation modes including Secure Real COM, Secure TCP Server, Secure TCP Client, Reverse SSH and Secure Pair Connection help protect serial data in transit. Drivers are available for Windows 11, Linux kernels 4.x to 6.x, macOS 11 to 14 and Arm-based platforms, making it a practical choice for integrating legacy serial devices into modern networks.

Features

- Software-selectable RS-232/422/485 interface
- Secure operation modes including Reverse SSH and Secure Real COM
- Fixed TTY drivers for Linux and macOS
- Fibre Ethernet option for noise immunity and long-distance links
- Wide-temperature design for harsh industrial environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port (software-selectable), DB9 male
- Ethernet: 1 x 10/100BaseT(X) RJ45 port with 1.5 kV magnetic isolation
- Fibre: 100BaseFX single-mode, SC connector
- Baudrate 50 bps to 921.6 kbps, supports non-standard baudrates
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Operation modes: Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217, Pair Connection
- Secure modes: Secure Real COM, Secure TCP Server, Secure TCP Client, Reverse SSH, Secure Pair Connection
- Operating temperature: -40 to 75°C
- Drivers for Windows 11, Linux kernels 4.x/5.x/6.x, macOS 11 to 14, Arm-based platforms

FAQs

Q: What serial interfaces does the NPort IA5150-S-SC-G2-T support?
A: It has one software-selectable RS-232/422/485 serial port on a DB9 male connector.

Q: What network connections are available on this model?
A: It provides one 10/100BaseT(X) RJ45 port with 1.5 kV magnetic isolation and one 100BaseFX single-mode fibre port with an SC connector.

Q: What is the operating temperature range?
A: The -T model operates from -40 to 75°C, suited to harsh industrial environments.

Q: Which operation modes does it support?
A: Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217 and Pair Connection, plus secure modes such as Secure Real COM, Reverse SSH and Secure Pair Connection.

Q: Which operating systems are supported by the drivers?
A: Drivers are available for Windows 11, Linux kernels 4.x, 5.x and 6.x, macOS 11 to 14 and Arm-based platforms.

Q: What baudrates can it handle?
A: It supports baudrates from 50 bps to 921.6 kbps, including non-standard baudrates.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
