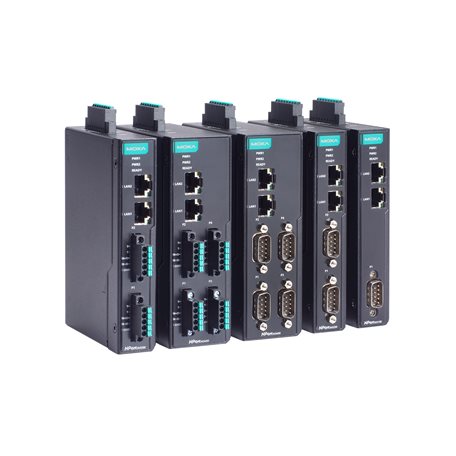

• Moxa NPort IA5150-S-SC-G2 device server with black switches and teal ports
1 1

Moxa

Moxa NPort IA5150-S-SC-G2 | NPort IA5000-G2 1-Port RS-232/422/485 Device Server, RJ45 + 100FX SC SM

Moxa NPort IA5150-S-SC-G2 | NPort IA5000-G2 1-Port RS-232/422/485 Device Server, RJ45 + 100FX SC SM

Authorised Moxa Partner

NPort IA5150-S-SC-G2

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort IA5150-S-SC-G2 is an industrial serial device server that connects one software-selectable RS-232/422/485 serial port to Ethernet. This variant combines a 10/100BaseT(X) RJ45 port with a 100BaseFX single-mode SC fibre port for runs of up to 40 km, and operates across a -10 to 60°C temperature range in a rugged IP30 metal DIN-rail housing.

Security and flexibility are built in, with Secure Boot, a TRNG root of trust, HTTPS, SSHv2 and SNMPv3, plus standard and secure operation modes such as Real COM, TCP Server, TCP Client, UDP, Reverse Terminal and Reverse SSH. Dual 12 to 48 VDC power inputs with a relay output, and hazardous-location (ATEX, Class I Div 2, IECEx) and DNV maritime certifications, make it suited to factory automation, utilities and marine installations.

Features

- Secure Boot and TRNG root of trust
- Secure operation modes including Reverse SSH, Secure Real COM and Secure TCP
- Standard modes: Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217, Pair Connection
- Windows Real COM, Linux Real TTY, macOS fixed TTY and Android API support
- Support for Arm-based platforms and virtual machines (VMware ESXi, VMware Fusion, Parallels)
- Dual power inputs with relay output
- Management via SNMPv1/v2c/v3, LLDP, DHCP and HTTPS
- Configuration via web console, Device Search Utility, MCC Tool or serial console

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port, software-selectable, DB9 male
- 1 x 10/100BaseT(X) RJ45 port, auto MDI/MDI-X
- 1 x 100BaseFX single-mode SC fibre port, typical distance 40 km
- Fibre TX 1280 to 1340 nm, link budget 29 dB
- Bitrate 50 bps to 921.6 kbps, supports non-standard baudrates
- 12 to 48 VDC input, dual power inputs via 8-pin terminal block
- Relay contact rating 1 A @ 30 VAC resistive load
- IP30 metal housing, DIN-rail mount
- Dimensions 25 x 89 x 129 mm, weight 384 g
- Operating temperature -10 to 60°C, storage -40 to 85°C
- Hazardous locations: ATEX, Class I Division 2, IECEx
- Maritime: DNV certified with 24 VDC power input
- MTBF 2,889,487 hrs (Telcordia SR-332)

FAQs

Q: What serial interfaces does the NPort IA5150-S-SC-G2 support?
A: It has one DB9 male serial port that is software-selectable between RS-232, RS-422 and RS-485, with bitrates from 50 bps to 921.6 kbps.

Q: What network connections does this variant have?
A: One 10/100BaseT(X) RJ45 port and one 100BaseFX single-mode SC fibre port, with a typical fibre distance of 40 km.

Q: What is the operating temperature range?
A: This model operates from -10 to 60°C, so it is not the wide-temperature variant.

Q: How is the device powered?
A: It accepts 12 to 48 VDC through an 8-pin terminal block with dual power inputs and a relay output.

Q: Which operation modes are available?
A: Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217 and Pair Connection, plus secure modes including Secure Real COM, Secure TCP Server, Secure TCP Client, Reverse SSH and Secure Pair Connection.

Q: Is it suitable for hazardous or marine environments?
A: The series carries ATEX, Class I Division 2 and IECEx hazardous-location certifications, and DNV maritime certification when powered at 24 VDC.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
