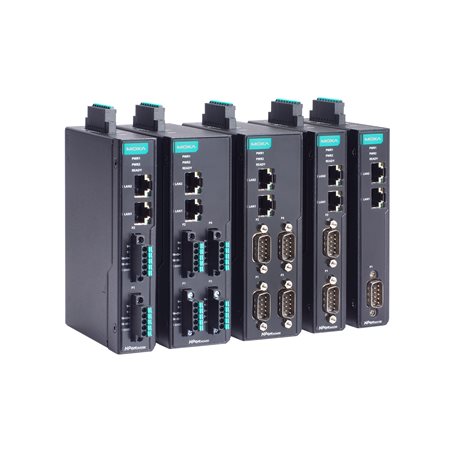

Moxa NPort IA5150-M-ST-G2-T | Serial Device Server, 100BaseFX ST, -40 to 75°C

Authorised Moxa Partner

SKU:NPort IA5150-M-ST-G2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort IA5150-M-ST-G2-T is a 1-port RS-232/422/485 DIN-rail serial device server from the second generation NPort IA5000-G2 range, designed to connect industrial serial equipment to Ethernet networks. This variant features a 100BaseFX multi-mode fibre port with an ST connector reaching up to 4 km, and a wide -40 to 75°C operating temperature range for harsh industrial environments.

The device supports a broad set of operating modes including Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217 and Pair Connection, along with secure modes using TLS and SSH. Two Ethernet ports allow cascading for simpler wiring or dual IP addressing for network redundancy. Built-in 1.5 kV magnetic isolation, a metal housing and surge protection suit factory automation, energy, transport and other demanding deployments.

Features

- Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC2217 and Pair Connection operating modes
- Secure operation modes: Secure Real COM, Secure TCP Server/Client, Reverse SSH and Secure Pair Connection
- Two Ethernet ports with the same IP or dual IP addresses for network redundancy
- Cascading Ethernet ports for easy wiring
- One-click diagnostics and embedded traffic monitoring
- Compliance with IEC 62443-4-2 Security Level 2 requirements
- DNV, CID2, ATEX Zone 2 and IECEx compliance
- Metal housing with full surge protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x serial port, RS-232/422/485 (software-selectable)
- 1 x 100BaseFX multi-mode fibre port, ST connector, up to 4 km
- Ethernet cascade port, 2 Ethernet ports usable as switch ports
- Baudrate 50 bps to 921.6 kbps, supports non-standard baudrates
- Power input 12 to 48 VDC
- Operating temperature -40 to 75°C
- Built-in 1.5 kV magnetic isolation protection
- Security protocols: HTTPS (TLS 1.2), SNMPv3, SSHv2
- Weight 384 g
- DIN-rail mounting with metal housing and screw connectors

FAQs

Q: What type of fibre connection does the NPort IA5150-M-ST-G2-T use?
A: It has a 100BaseFX multi-mode fibre port with an ST connector, supporting distances of up to 4 km.

Q: Which serial interfaces does this device server support?
A: It provides one serial port supporting RS-232, RS-422 and RS-485, selectable in software.

Q: What is the operating temperature range?
A: The -T model operates from -40 to 75°C, suitable for harsh industrial and outdoor cabinet environments.

Q: What power input does it require?
A: It accepts a 12 to 48 VDC power input.

Q: Does it support secure communication?
A: Yes. It supports HTTPS (TLS 1.2), SNMPv3 and SSHv2, plus secure operating modes such as Secure Real COM and Reverse SSH, and complies with IEC 62443-4-2 Security Level 2 requirements.

Q: Can the Ethernet ports be used for redundancy or daisy-chaining?
A: Yes. The two Ethernet ports can be cascaded for simplified wiring, or configured with the same IP or dual IP addresses for network redundancy.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
