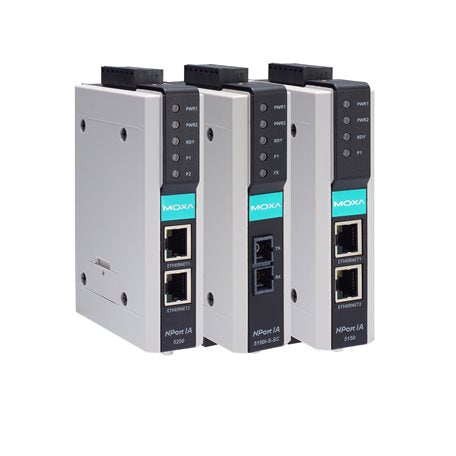

Moxa NPort IA-5250I | NPort IA5000 2-Port Serial Device Server, 2kV Isolation

Authorised Moxa Partner

SKU:NPort IA-5250I

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort IA-5250I is a 2-port RS-232/422/485 serial device server from the NPort IA5000 range, built to connect serial equipment to an Ethernet network in industrial automation environments. It provides 2 kV serial isolation, two 10/100BaseT(X) RJ45 Ethernet ports that share a single IP address and support Ethernet cascading, and operates across a 0 to 55°C temperature range.

A compact IP30 plastic housing with DIN-rail mounting and dual redundant DC power inputs suits control cabinets and plant-floor installations. Socket modes include TCP server, TCP client and UDP, with automatic data direction control for 2-wire and 4-wire RS-485, and relay output and email alerts to flag faults.

Features

- Socket modes: TCP server, TCP client and UDP
- ADDC automatic data direction control for 2-wire and 4-wire RS-485
- Cascading Ethernet ports for simpler wiring
- Redundant DC power inputs
- Warnings and alerts by relay output and email
- 2 kV serial isolation protects connected equipment
- Rugged IP30 housing with DIN-rail mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x RS-232/422/485 serial ports (DB9 male)
- 2 x 10/100BaseT(X) RJ45 Ethernet ports (1 IP, Ethernet cascade)
- 2 kV serial isolation
- 1.5 kV built-in magnetic isolation on Ethernet
- Baudrate: 110 to 230400 bps
- Data bits: 5, 6, 7, 8
- Parity: None, Even, Odd, Space, Mark
- Stop bits: 1, 1.5, 2
- Flow control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
- RS-485 terminator: 120 ohms
- RS-485 pull high/low resistor: 1 kilo-ohm, 150 kilo-ohms
- Two DC power inputs via terminal block
- Input current: 510 mA @ 12 VDC
- Relay contact rating: 1 A @ 30 VDC resistive load
- Operating temperature: 0 to 55°C
- IP30 plastic housing, DIN-rail mounting
- Weight: 380 g
- MTBF: 1,236,384 hrs (Telcordia)

FAQs

Q: Which serial standards does the NPort IA-5250I support?
A: Both of its two DB9 male serial ports support RS-232, RS-422 and RS-485, with automatic data direction control for RS-485.

Q: How does the dual Ethernet port arrangement work?
A: It has two 10/100BaseT(X) RJ45 Ethernet ports sharing a single IP address, so devices can be daisy-chained using Ethernet cascading to simplify wiring.

Q: What isolation does this model provide?
A: It provides 2 kV serial isolation plus 1.5 kV built-in magnetic isolation on the Ethernet ports.

Q: What operating temperature range is it rated for?
A: This model is rated for 0 to 55°C, so it suits standard industrial enclosures rather than extended-temperature environments.

Q: How is the NPort IA-5250I powered and mounted?
A: It has two redundant DC power inputs on a terminal block and mounts on a DIN rail in an IP30 plastic housing.

Q: Which socket modes are supported?
A: TCP server, TCP client and UDP operation modes are supported for connecting serial devices over the network.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
