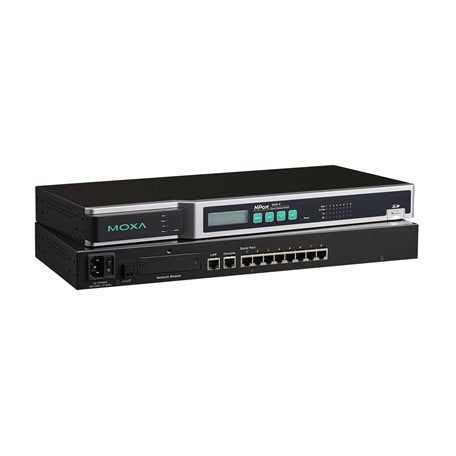

Moxa NPort 6650-32-48V | NPort 6650-32 32-Port RS-232/422/485 Terminal Server, 48 VDC

Authorised Moxa Partner

SKU:NPort 6650-32-48V

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 6650-32-48V is a 32-port RS-232/422/485 secure terminal server that connects up to 32 serial devices to Ethernet under a single IP address. It encrypts serial data with TLS and SSH, and each port can be set to RS-232, RS-422 or RS-485. This model runs from a 48 VDC supply (20 to 72 VDC, -20 to -72 VDC) and is suited to telecom, industrial and data centre racks. It is the standard-temperature variant, rated 0 to 55 °C.

The unit has 8-pin RJ45 serial connectors, one 10/100BaseT(X) Ethernet port and a 19-inch rack-mount metal housing with ears included. An LCD panel and push buttons simplify IP address setup, port buffers hold serial data during network outages, and an SD slot supports up to 32 GB of extra buffering. Optional NM Series modules add Ethernet ports for redundancy, and security features are based on IEC 62443.

Features

- Connects 32 serial devices of any type to Ethernet under a single IP address
- Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal and Reverse Terminal
- LCD panel and push buttons for easy IP address configuration
- Port buffers store serial data when Ethernet is offline (64 KB, expandable with SD card)
- Nonstandard baudrates supported with high precision
- IPv6 support
- Ethernet redundancy (STP/RSTP/Turbo Ring) with an optional network module
- Generic serial commands supported in Command-by-Command mode
- Security features based on IEC 62443
- Adjustable termination, pull-high and pull-low resistors for RS-485 via DIP switches

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 32 x RS-232/422/485 serial ports, 8-pin RJ45
- 1 x 10/100BaseT(X) Ethernet port, RJ45, auto MDI/MDI-X
- Input voltage: 48 VDC (20 to 72 VDC, -20 to -72 VDC)
- Input current: 293 mA @ 48 VDC, 200 mA @ 88 VDC
- Baudrate: 50 bps to 921.6 kbps, non-standard baudrates supported
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- RS-485 termination 120 ohms, pull-high/low resistors 1 kilo-ohm or 150 kilo-ohms
- RS-485 automatic data direction control (ADDC)
- Secure modes: SSH, Secure Real COM, Secure TCP Server/Client
- Security protocols: HTTPS (TLS 1.2), SNMPv3, SSHv2
- SD slot up to 32 GB (SD 2.0 compatible)
- Alarm contact: resistive load 1 A @ 24 VDC
- Magnetic isolation protection: 1.5 kV
- RS-232 console port, 8-pin RJ45 (19200, n, 8, 1)
- Metal housing, 19-inch rack mounting, ears included
- Dimensions with ears: 480 x 195 x 44 mm
- Dimensions without ears: 440 x 195 x 44 mm
- Weight: 3,600 g
- Operating temperature: 0 to 55 °C
- Storage temperature: -40 to 75 °C
- Humidity: 5 to 95% non-condensing
- MTBF: 310,078 hours (Telcordia)
- 5-year warranty

FAQs

Q: What power input does the NPort 6650-32-48V use?
A: It runs from a 48 VDC supply, accepting 20 to 72 VDC or -20 to -72 VDC. Input current is 293 mA at 48 VDC.

Q: Which serial standards does each port support?
A: Every one of the 32 ports can be set to RS-232, RS-422 or RS-485 through configuration. The ports use 8-pin RJ45 connectors.

Q: How is serial data secured over the network?
A: The terminal server supports SSH, Secure Real COM and Secure TCP Server/Client modes, with HTTPS (TLS 1.2), SNMPv3 and SSHv2 for management.

Q: What happens to serial data if the Ethernet link drops?
A: Port buffers of 64 KB per port hold serial data while the network is offline. An SD card of up to 32 GB can expand the buffering.

Q: Can I add Ethernet redundancy or fibre ports?
A: Yes. The unit is compatible with NM Series expansion modules that add RJ45 or fibre Ethernet ports and enable STP, RSTP or Turbo Ring redundancy.

Q: How does this model differ from other NPort 6650-32 variants?
A: This SKU is the 48 VDC input version with a standard operating temperature range of 0 to 55 °C and 32 serial ports.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
