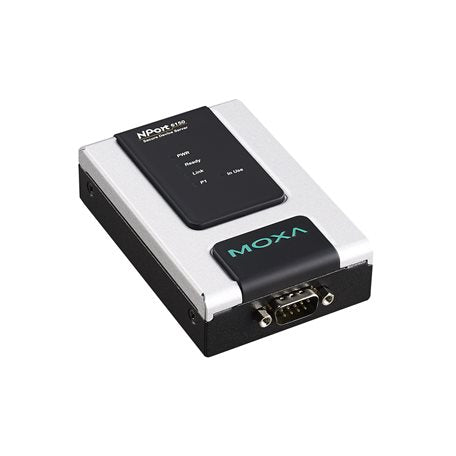

Moxa NPort 6150-T | 1-Port RS-232/422/485 Secure Server

Authorised Moxa Partner

SKU:NPort 6150-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 6150-T is a 1-port RS-232/422/485 secure terminal server that connects a serial device to a 10/100BaseT(X) RJ45 Ethernet network. It is the wide-temperature model, rated for -40 to 75°C, and is powered from 12-48 VDC (power adapter not included). SSL and SSH encryption protects serial data in transit, making it a strong fit for industrial sites that need secure remote access to legacy serial equipment.

The DB9 male serial port supports baud rates from 50 bps to 921.6 kbps, including non-standard rates, with RTS/CTS, DTR/DSR and XON/XOFF flow control. It offers both secure and standard operation modes, including Real COM, TCP Server, TCP Client, UDP, Reverse Telnet and Pair Connection. HTTPS, SSHv2 and SNMPv3 management, with local, RADIUS and TACACS+ authentication, keep it manageable in controlled environments.

Features

- Secure data transmission over Ethernet using SSL and SSH protocols
- Wide operating temperature range for harsh industrial environments
- Secure modes: Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH
- Standard modes: Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217, Pair Connection, Terminal, Printer, PPP, Ethernet Modem
- Authentication via local database, RADIUS and TACACS+
- Supports DIN-rail and desktop mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port, DB9 male
- 1 x 10/100BaseT(X) Ethernet port (RJ45), auto MDI/MDI-X
- 1.5 kV built-in magnetic isolation protection
- Baudrate 50 bps to 921.6 kbps, supports non-standard baudrates
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2; parity None/Even/Odd/Space/Mark
- Flow control RTS/CTS, DTR/DSR, XON/XOFF
- ADDC for RS-485, 120 ohm terminator, 1 kΩ/150 kΩ pull high/low resistors
- Security: HTTPS (TLS 1.2), SSHv2, SNMPv3; AES-128/256, SHA-256/384, RSA-1024
- Authentication: local database, RADIUS, TACACS+
- Power input 12-48 VDC (power adapter not included)
- Operating temperature -40 to 75°C

FAQs

Q: What serial interfaces does the NPort 6150-T support?
A: It has one DB9 male serial port that supports RS-232, RS-422 and RS-485, selectable per application.

Q: What is the operating temperature range?
A: The NPort 6150-T is the wide-temperature model and operates from -40 to 75°C.

Q: Is a power adapter included?
A: No. The unit is powered from 12-48 VDC and the power adapter is not included.

Q: How does it secure serial data?
A: It encrypts serial data over Ethernet using SSL and SSH, with secure operation modes such as Secure Real COM, Secure TCP Client, Secure TCP Server and Reverse SSH. Management supports HTTPS (TLS 1.2), SSHv2 and SNMPv3.

Q: Which authentication methods are supported?
A: Users can be authenticated against the local database, a RADIUS server or a TACACS+ server.

Q: Can it be mounted on a DIN rail?
A: Yes, it supports both DIN-rail and desktop mounting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
