Moxa NPort 6150-G2-T | 1-Port RS-232/422/485 Secure Device Server, -40 to 75°C

Authorised Moxa Partner

SKU:NPort 6150-G2-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

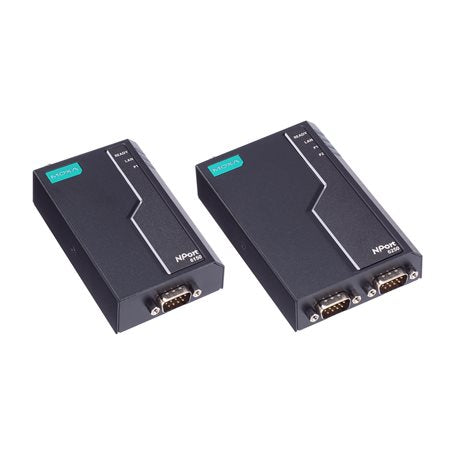

The Moxa NPort 6150-G2-T is a 1-port RS-232/422/485 secure device server that connects serial devices to Ethernet networks. This wide temperature -T model is rated for -40 to 75°C operation, making it suited to industrial edge connectivity in harsh environments. A metal housing and a DB9 male serial port make it straightforward to integrate with existing serial equipment.

Secure operation modes include Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server and SSH, alongside standard modes such as Real COM, RFC2217, TCP Server, TCP Client and UDP. Security support covers HTTPS with TLS 1.2/1.3, SNMPv3 and SSHv2, with Secure Boot and encrypted configuration import and export for protecting deployments.

Features

- Secure operation modes: Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH
- Standard operation modes: Disabled, Pair Connection, SLIP, PPP, Real COM, Reverse Terminal, RFC2217, TCP Client, TCP Server, Terminal, UDP
- Security protocols: HTTPS (TLS 1.2/1.3), SNMPv3, SSHv2
- Encryption and hashing: AES-128/256, CHACHA20, SHA-256/384, with ECC and RSA key support up to RSA-4096 / ECC-521
- Encrypted configuration import and export (AES-256, SHA-256, HMAC)
- Secure Boot support
- Wide temperature operation from -40 to 75°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x serial port, DB9 male connector
- Serial standards: RS-232/RS-422/RS-485
- Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, RTS Toggle, XON/XOFF
- RS-485 data direction control: Automatic Data Direction Control (ADDC)
- RS-485 terminator: 120 ohms (software-configurable)
- RS-485 pull high/low resistor: 1 kilo-ohm, 150 kilo-ohms (software-configurable)
- Input voltage: 12 to 48 VDC
- Input current: 160 mA (max.)
- Housing: Metal
- Dimensions (with ears): 64 x 111.8 x 25 mm (2.52 x 4.4 x 0.98 in)
- Operating temperature: -40 to 75°C

FAQs

Q: What serial interfaces does the NPort 6150-G2-T support?
A: It provides one DB9 male serial port that supports RS-232, RS-422 and RS-485, selectable to suit the connected serial device.

Q: What does the -T suffix mean on this model?
A: The -T denotes the wide temperature variant, rated for operation from -40 to 75°C.

Q: Which secure operation modes are available?
A: Secure modes include Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server and SSH.

Q: What power input does it require?
A: It accepts a 12 to 48 VDC input with a maximum input current of 160 mA.

Q: Does it support RS-485 termination and pull resistors?
A: Yes. The 120 ohm terminator and the 1 kilo-ohm and 150 kilo-ohm pull high/low resistors are software-configurable, and RS-485 data direction is handled automatically with ADDC.

Q: Which security protocols and encryption does it use?
A: It supports HTTPS (TLS 1.2/1.3), SNMPv3 and SSHv2, with AES-128/256 encryption, SHA-256/384 hashing and Secure Boot.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
