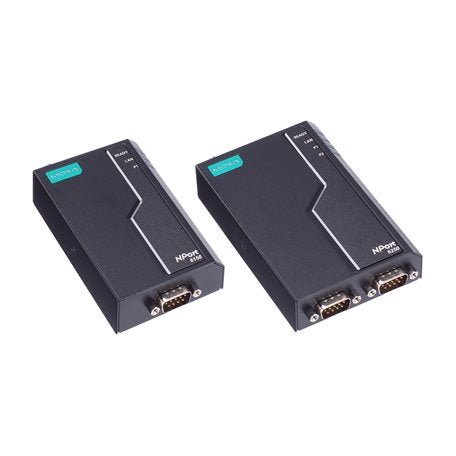

• Moxa NPort 6150-G2 RS-232/422/485 device server with teal branding and DB9 ports
1 1

Moxa

Moxa NPort 6150-G2 | 1-Port RS-232/422/485 Secure Serial Server

Moxa NPort 6150-G2 | 1-Port RS-232/422/485 Secure Serial Server

Authorised Moxa Partner

NPort 6150-G2

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort 6150-G2 is a 1-port RS-232/422/485 secure serial device server that connects a single serial device to an Ethernet network. This standard temperature model runs on 12 to 48 VDC and offers secure operation modes including Secure Real COM, Secure TCP Server and Client, Secure Pair Connection, SSH and Reverse SSH. It follows IEC 62443-4-2 design guidelines, making it well suited to industrial automation, building management and remote equipment access where serial data must travel securely over IP.

A DB9 male serial port supports baudrates from 50 bps to 921.6 kbps, while the 10/100BaseT(X) RJ45 port provides the network connection with 1.5 kV built-in magnetic isolation. Secure Boot, HTTPS (TLS 1.2/1.3), SNMPv3 and SSHv2 protect the device, and configuration is available through a web console, Windows utility, Device Search Utility, MCC Tool or serial console. The metal housing suits desktop use, with DIN-rail, wall and side-panel mounting available with optional kits.

Features

- Encrypted serial-over-IP with secure modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal and Reverse Terminal
- Secure Boot only allows Moxa-authorised firmware to run
- SSL certificate signing by RSA-4096 / ECC-521
- Root of trust with True Random Number Generator and security screws
- Software-adjustable RS-485 terminator and pull high/low resistors for simple RS-485 setup
- Side-mount installation option and two-sided LEDs for flexible installation
- One-click log collection for easier troubleshooting
- Built-in watchdog timer for automatic reboot, plus built-in buzzer and RTC alerts
- Developed under the IEC 62443-4-1 secure development lifecycle
- Multiple configuration options: web console (HTTP/HTTPS), Windows utility, DSU, MCC Tool and serial console

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port, DB9 male
- 1 x 10/100BaseT(X) Ethernet port, RJ45, auto MDI/MDI-X
- Baudrate: 50 bps to 921.6 kbps, non-standard baudrates supported
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, RTS Toggle, XON/XOFF
- RS-485 ADDC (Automatic Data Direction Control)
- RS-485 120 ohm terminator and 1 kilo-ohm/150 kilo-ohm pull high/low resistors, software-configurable
- Input voltage: 12 to 48 VDC, 160 mA maximum
- Magnetic isolation protection: 1.5 kV built-in
- Secure operation modes: Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH
- Standard operation modes: Real COM, TCP Server, TCP Client, UDP, Pair Connection, Terminal, Reverse Terminal, RFC2217, SLIP, PPP
- Authentication: Local database, RADIUS, TACACS+
- Security protocols: HTTPS (TLS 1.2/1.3), SNMPv3, SSHv2
- Cybersecurity: IEC 62443-4-2 Security Level 2, JC-STAR Level 1
- Windows Real COM drivers: Windows 11, 10, 8.1, 8, 7; Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2
- Linux Real TTY drivers: Kernel 6.x, 5.x, 4.x
- Fixed TTY drivers: macOS 14, 13, 12, 11
- Metal housing, 64 x 111.8 x 25 mm with ears
- Weight: 228 g product only
- Storage temperature: -40 to 75 C
- Ambient relative humidity: 5 to 95% non-condensing
- Safety: IEC 62368-1, UL 62368-1, EN 62368-1
- EMC: EN 55032/35, FCC Part 15B Class A
- MTBF: 3,843,653 hrs (Telcordia SR-332 Issue 4)

FAQs

Q: How many serial ports does the NPort 6150-G2 have?
A: It has one serial port with a DB9 male connector, software-selectable between RS-232, RS-422 and RS-485.

Q: What power input does this model use?
A: It runs on 12 to 48 VDC with a maximum input current of 160 mA.

Q: Does it support encrypted serial communication?
A: Yes. Secure operation modes include Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH and Reverse SSH.

Q: Which operating systems are supported for the Real COM and TTY drivers?
A: Real COM drivers support Windows 11, 10, 8.1, 8 and 7 and Windows Server 2022 down to 2008 R2. Real TTY drivers support Linux kernel 4.x, 5.x and 6.x, and fixed TTY drivers support macOS 11 to 14.

Q: Can the NPort 6150-G2 be DIN-rail or wall mounted?
A: Yes. It sits on a desktop as supplied, and DIN-rail, wall and side-panel mounting are available with optional mounting kits.

Q: What cybersecurity standards does it align with?
A: It follows IEC 62443-4-2 design guidelines at Security Level 2 and also carries JC-STAR Level 1. It uses Secure Boot and supports HTTPS (TLS 1.2/1.3), SNMPv3 and SSHv2.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
