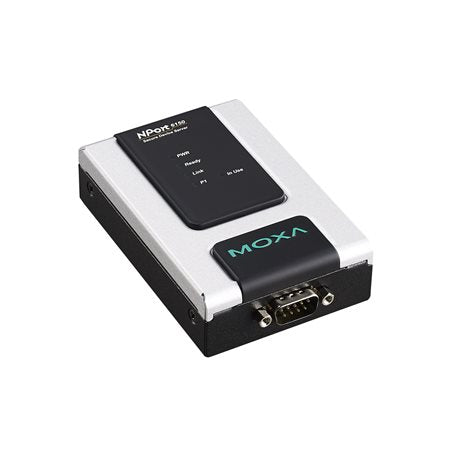

Moxa NPort 6150 | Secure Device Server, 1-Port RS-232/422/485

Authorised Moxa Partner

SKU:NPort 6150

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 6150 is a 1-port RS-232/422/485 secure device server that connects serial equipment to a 10/100 Ethernet network. This standard temperature model operates from 0 to 55°C on a 12 to 48 VDC input and ships with a power adapter, making it suited to indoor industrial, building automation and equipment monitoring deployments. Secure operation modes including Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH and Reverse SSH protect serial-over-IP traffic.

A software-selectable DB9 male port supports RS-232, RS-422 and RS-485 at baud rates from 50 bps to 921.6 kbps, including non-standard rates. Standard modes such as Real COM, TCP Server, TCP Client, UDP, RFC2217, Terminal, PPP and Reverse Telnet cover legacy and modern applications. The metal housing mounts on a desktop or wall, or on a DIN-rail with the optional kit.

Features

- Secure operation modes for Real COM, TCP Server, TCP Client, Pair Connection, SSH and Reverse SSH
- Wide range of standard operation modes including Real COM, TCP, UDP, RFC2217, Terminal, PPP and Ethernet Modem
- Software-selectable RS-232/422/485 on a single DB9 male port
- Automatic Data Direction Control (ADDC) for RS-485
- Built-in 1.5 kV magnetic isolation on the Ethernet port
- Built-in watchdog timer, buzzer and RTC
- Metal housing with desktop, wall or DIN-rail (optional kit) mounting
- Supports non-standard baudrates up to 921.6 kbps

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port (DB9 male)
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Baudrate 50 bps to 921.6 kbps, supports non-standard baudrates
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2; parity None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- RS-485 pull high/low resistors 1 kilo-ohm and 150 kilo-ohms; 120 ohm terminator; ADDC
- Secure modes: Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH, Reverse SSH
- Standard modes: Real COM, TCP Server, TCP Client, UDP, RFC2217, Reverse Telnet, Terminal, PPP, Printer, Ethernet Modem, Pair Connection
- Input voltage 12 to 48 VDC, 285 mA
- Built-in 1.5 kV magnetic isolation, watchdog timer, buzzer and RTC
- Metal housing, 90 x 100.4 x 29 mm with ears, 190 g
- Operating temperature 0 to 55°C; storage -40 to 75°C
- Humidity 5 to 95% non-condensing
- Approvals: CISPR 32, FCC Part 15B Class A, EN 55032/35, UL 60950-1, UL 62368-1, RoHS, CRoHS, WEEE
- MTBF 1,934,102 hrs

FAQs

Q: Which serial interfaces does the Moxa NPort 6150 support?
A: It has one DB9 male serial port that supports RS-232, RS-422 and RS-485, selectable in software.

Q: What secure modes are available?
A: Secure Real COM, Secure TCP Server, Secure TCP Client, Secure Pair Connection, SSH and Reverse SSH are supported for protected serial-over-IP communication.

Q: What is the power input and operating temperature for this model?
A: This standard temperature model runs from 12 to 48 VDC and operates from 0 to 55°C. It is supplied with a power adapter.

Q: Can the NPort 6150 be DIN-rail mounted?
A: Yes, DIN-rail mounting is supported with the optional mounting kit. It can also be used on a desktop or mounted on a wall.

Q: What is the maximum baud rate?
A: It supports baud rates from 50 bps up to 921.6 kbps, including non-standard baud rates.

Q: Does it support RS-485 without an external converter?
A: Yes, the serial port includes RS-485 with automatic data direction control (ADDC), selectable 1 kilo-ohm or 150 kilo-ohm pull high/low resistors and a 120 ohm terminator.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
