Moxa NPort 5650I-8-DT-T | NPort 5600-DT 8-Port RS-232/422/485 Serial Device Server, DB9, 2 kV, -40 to

Authorised Moxa Partner

SKU:NPort 5650I-8-DT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

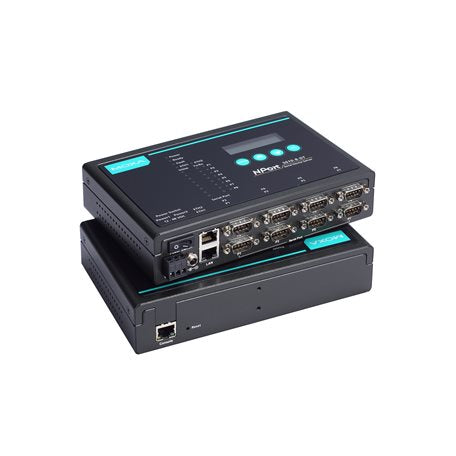

The Moxa NPort 5650I-8-DT-T is a compact desktop 8-port RS-232/422/485 serial device server that connects serial devices to an Ethernet network. It features DB9 male connectors, 2 kV serial isolation and a wide operating temperature range of -40 to 75C, making it suited to industrial automation, utilities and remote monitoring deployments where serial equipment must be networked reliably.

Two 10/100BaseT(X) Ethernet ports with cascade wiring simplify daisy-chain installations, while dual 12 to 48 VDC power inputs provide power redundancy. Socket modes include TCP server, TCP client, UDP and Real COM, and configuration is available via Telnet, web browser or Windows utility. The metal housing supports desktop placement, with DIN-rail and wall mounting available using optional kits.

Features

- 8 serial ports supporting RS-232/422/485
- Compact desktop design
- 10/100M auto-sensing Ethernet
- Two Ethernet ports for cascade wiring
- Socket modes: TCP server, TCP client, UDP, Real COM
- Configuration by Telnet, web browser or Windows utility
- SNMP MIB-II for network management
- DIP switches for adjustable termination and pull high/low resistors
- 2 kV optical isolation protection on serial ports
- Dual DC power inputs with terminal block and power jack
- Built-in watchdog timer, buzzer and RTC
- Wide operating temperature range of -40 to 75C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports (DB9 male)
- 2 x 10/100BaseT(X) Ethernet ports (RJ45, cascade wiring)
- 2 kV serial isolation
- 1.5 kV built-in magnetic isolation on Ethernet ports
- Baudrate 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- RS-485 pull high/low resistors 1 kilo-ohm and 150 kilo-ohms, 120 ohm terminator
- ADDC automatic data direction control for RS-485
- RS-232 console port (3-pin, 19200, n, 8, 1)
- 2 x power inputs, 12 to 48 VDC, terminal block and power jack
- Reverse polarity protection
- Operating temperature -40 to 75C
- Metal housing
- Dimensions 197 x 53 x 125 mm (with DIN-rail kit)
- Weight 1,410 g

FAQs

Q: What serial interfaces does the NPort 5650I-8-DT-T support?
A: It provides 8 serial ports with DB9 male connectors, each configurable for RS-232, RS-422 or RS-485.

Q: What temperature range can it operate in?
A: This wide-temperature model operates from -40 to 75C, suited to harsh industrial environments.

Q: Does it offer serial isolation?
A: Yes. The serial ports have 2 kV isolation, and the Ethernet ports have built-in 1.5 kV magnetic isolation.

Q: What power input does it use?
A: It has two power inputs accepting 12 to 48 VDC, via a removable 3-contact terminal block and a power input jack, with reverse polarity protection.

Q: Can it be DIN-rail or wall mounted?
A: Yes. It is designed for desktop use, and DIN-rail and wall mounting are available with optional kits.

Q: Which operating modes are supported?
A: Socket modes include TCP server, TCP client, UDP and Real COM, configurable by Telnet, web browser or Windows utility.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
