Moxa NPort 5650I-8-DT | 8-Port RS-232/422/485 Serial Device Server, 2kV

Authorised Moxa Partner

SKU:NPort 5650I-8-DT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

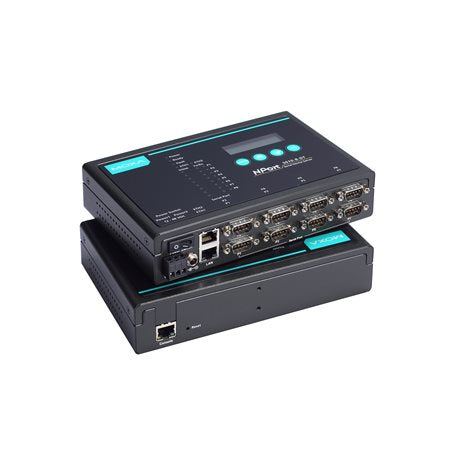

The Moxa NPort 5650I-8-DT is a compact desktop 8-port serial device server that connects RS-232/422/485 serial devices to a 10/100M Ethernet network. Eight DB9 male serial ports each support software-selectable RS-232, RS-422 or RS-485 operation, with 2 kV isolation on the serial ports to protect equipment in electrically noisy environments. It operates across a 0 to 55 C temperature range and is configured through the LCD panel, Telnet, a web browser or the Windows utility.

Two 10/100BaseT(X) RJ45 Ethernet ports provide a built-in switch function for cascade wiring, while dual power inputs (a terminal block and a power jack) accept 12 to 48 VDC. Socket modes include TCP server, TCP client, UDP and Real COM, with driver support for Windows, Linux, Unix variants and Android. SNMP MIB-II support allows management from existing network monitoring tools. DIN-rail and wall mounting are available with optional kits.

Features

- 8 serial ports supporting RS-232, RS-422 and RS-485
- 2 kV serial isolation for protection in noisy electrical environments
- Compact desktop design with metal housing
- 10/100M auto-sensing Ethernet with dual ports for cascade wiring
- LCD panel for easy IP address configuration
- Configure by serial console, Telnet, web browser (HTTP/HTTPS) or Windows utility
- Socket modes: TCP server, TCP client, UDP and Real COM
- SNMP MIB-II support for network management
- DIP switch selectable 1k/150k ohm pull high/low resistors and 120 ohm terminator
- Dual power inputs with terminal block and power jack
- Built-in watchdog timer, buzzer and RTC for reliable operation
- LED indicators for system, serial Tx/Rx and Ethernet

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports (DB9 male)
- Serial isolation: 2 kV
- Baudrate: 50 to 921.6 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- RS-485 pull high/low resistor: 1 kilo-ohm or 150 kilo-ohms, 120 ohm terminator
- RS-485 data direction control: ADDC (automatic data direction control)
- Ethernet: 2 x 10/100BaseT(X) RJ45 with 1.5 kV magnetic isolation
- Console port: RS-232, 3-pin (19200, n, 8, 1)
- Power input: 12 to 48 VDC, 2 power inputs (terminal block and power jack)
- Input current: 1066 mA @ 12 VDC
- Reverse polarity protection supported
- Housing: Metal
- Dimensions: 197 x 44 x 125 mm (without ears), 229 x 46 x 125 mm (with ears)
- Weight: 0.94 kg
- Operating temperature: 0 to 55 C
- Storage temperature: -40 to 75 C
- Humidity: 5 to 95% (non-condensing)
- Installation: Desktop, DIN-rail (optional kit), wall mount (optional kit)
- Certifications: FCC Part 15B Class A, CISPR 32, EN 55032/24, UL 60950-1, RoHS, CRoHS, WEEE
- MTBF: 836,374 hrs (Telcordia/Bellcore)

FAQs

Q: Which serial interfaces does the NPort 5650I-8-DT support?
A: Each of the 8 DB9 male serial ports supports RS-232, RS-422 and RS-485, with the interface selectable per port.

Q: What does the 2 kV isolation provide?
A: The 5650I model includes 2 kV isolation on the serial ports, protecting the unit and connected equipment from electrical surges and ground loops in noisy environments.

Q: What power input does it accept?
A: It accepts 12 to 48 VDC and has two power inputs, a removable 3-contact terminal block and a power input jack, with reverse polarity protection.

Q: Which operating systems are supported for Real COM and TTY drivers?
A: Real COM drivers cover Windows 95 through Windows 10 and Server editions plus Windows Embedded CE, while fixed and Linux TTY drivers cover Linux kernels 2.4.x to 4.x and several Unix variants, and an Android API is available.

Q: Can this unit be mounted on a DIN rail or wall?
A: Yes. It is designed for desktop use, and DIN-rail or wall mounting is available using optional mounting kits.

Q: What is the operating temperature range?
A: The NPort 5650I-8-DT operates from 0 to 55 C, so it suits indoor and controlled environments rather than wide-temperature deployments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
