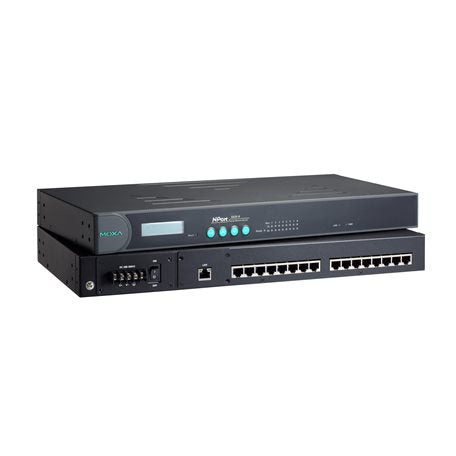

Moxa NPort 5650-8-T | 8-Port RS-232/422/485 Rackmount Device Server, -40 to 75C

Authorised Moxa Partner

SKU:NPort 5650-8-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The NPort 5650-8-T is an 8-port RS-232/422/485 rackmount serial device server that connects serial equipment to an Ethernet network over a single 10/100BaseT(X) RJ45 port. It is the wide-temperature model of the NPort 5650-8, rated for operation from -40 to 75°C, and uses 8-pin RJ45 serial connectors with a 100-240 VAC power input.

Housed in a metal 1U, 19-inch rackmount chassis with built-in 1.5 kV magnetic isolation, it suits industrial automation, building management and data centre console deployments. Each port supports Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection, Reverse Telnet and RFC2217 modes, and the unit can be configured via the LCD panel, Telnet, a web browser or the Windows utility.

Features

- Standard 19-inch rackmount size
- Easy IP address configuration with LCD panel
- Automatic Data Direction Control (ADDC) for RS-485
- DIP switches for setting termination and pull high/low resistor values
- Configuration via Telnet, web browser (HTTP/HTTPS) or Windows utility
- Supports RTS, CTS, DTR, DSR and DCD control signals through NPort drivers
- Wide operating temperature range of -40 to 75°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports (8-pin RJ45)
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- 1.5 kV built-in magnetic isolation protection
- Input voltage: 100 to 240 VAC, 47 to 63 Hz
- Input current: 158 mA @ 100 VAC
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 75°C (-40 to 167°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Metal housing, 19-inch rackmount, 1U
- Dimensions (with ears): 480 x 45.5 x 198 mm
- Dimensions (without ears): 440 x 45.5 x 198 mm
- Weight: 2,310 g (5.09 lb)
- Operation modes: Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection, Reverse Telnet, RFC2217, Disabled

FAQs

Q: What serial interfaces does the NPort 5650-8-T support?
A: It provides 8 serial ports, each software-selectable between RS-232, RS-422 and RS-485, using 8-pin RJ45 connectors.

Q: What is the difference between the NPort 5650-8-T and the standard NPort 5650-8?
A: The -T model is the wide-temperature version and operates from -40 to 75°C, making it suited to harsher environments than the standard model.

Q: What power input does it use?
A: It has a built-in power supply accepting 100 to 240 VAC at 47 to 63 Hz, so no external adapter is required.

Q: Can it be mounted in a standard rack?
A: Yes. It is a 1U, 19-inch rackmount unit with mounting ears, measuring 480 x 45.5 x 198 mm with ears fitted.

Q: Which operation modes are available?
A: Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection, Reverse Telnet and RFC2217 modes are supported.

Q: How is the device configured?
A: The IP address can be set from the front LCD panel, and full configuration is available via Telnet, a web browser (HTTP/HTTPS) or the Windows utility.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
