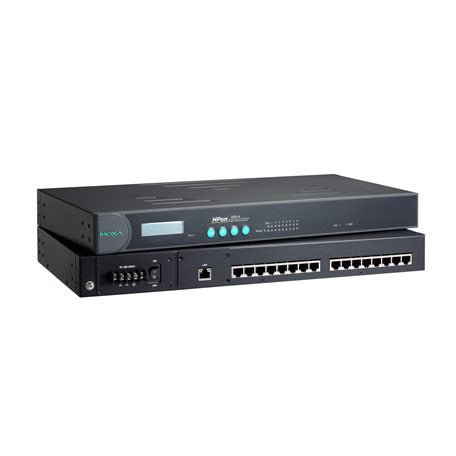

Moxa NPort 5650-8-S-SC | NPort 5650 8-Port RS-232/422/485 Device Server, SC SMF, 100-240VAC

Authorised Moxa Partner

SKU:NPort 5650-8-S-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The NPort 5650-8-S-SC is an 8-port RS-232/422/485 rackmount serial device server that makes serial devices network-ready over Ethernet. It connects to the LAN via a 100BaseFX single-mode fibre port with an SC connector, in addition to a 10/100 RJ45 port, making it well suited to long-distance links or electrically noisy environments. This variant takes 100 to 240 VAC input.

Supporting Real COM, TCP Server/Client, UDP, Reverse Telnet and RFC2217 operation modes, it integrates serial equipment into existing IP networks with Real COM/TTY drivers for Windows, Linux and macOS. A metal 19-inch rackmount housing with an LCD panel and push buttons allows on-device configuration, and HTTPS (TLS 1.2) and SNMPv3 provide secure management.

Features

- Connects 8 serial devices to an IP Ethernet LAN
- Single-mode fibre Ethernet uplink for long-distance or electrically noisy environments
- Multiple operation modes including Real COM, TCP Server/Client, UDP, Reverse Telnet and RFC2217
- Real COM/TTY drivers for Windows, Linux and macOS, plus Android API
- Automatic Data Direction Control (ADDC) for RS-485
- Configuration via web console, Telnet console or Windows utility
- Secure access with HTTPS (TLS 1.2) and SNMPv3
- LCD panel and push buttons for on-device configuration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports (8-pin RJ45)
- 1 x 100BaseFX single-mode fibre port (SC connector), typical distance 40 km at 1310 nm
- 1 x 10/100BaseT(X) RJ45 port with 1.5 kV magnetic isolation
- Baudrate up to 921.6 kbps
- Data bits 5 to 8, stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- Input voltage 100 to 240 VAC, 47 to 63 Hz
- Metal housing, 19-inch rackmount with LCD panel
- Dimensions with ears 480 x 45.5 x 198.25 mm
- Weight 2,440 g
- Operating temperature 0 to 60 C
- Storage temperature -20 to 70 C
- Humidity 5 to 95% non-condensing
- MTBF 738,291 hrs (MIL-HDBK-217F)
- 5-year warranty period

FAQs

Q: What type of fibre connection does the NPort 5650-8-S-SC use?
A: It has one 100BaseFX single-mode fibre port with an SC connector, with a typical distance of 40 km at 1310 nm. It also includes a 10/100BaseT(X) RJ45 port.

Q: Which serial standards are supported?
A: Each of the 8 serial ports supports RS-232, RS-422 and RS-485 on an 8-pin RJ45 connector, with baudrates up to 921.6 kbps.

Q: What power input does this model require?
A: It accepts 100 to 240 VAC at 47 to 63 Hz, drawing 164 mA at 100 VAC.

Q: Which operating systems are supported for Real COM drivers?
A: Real COM/TTY drivers are available for Windows, Linux and macOS, and an Android API is also provided.

Q: How is the device configured?
A: Through a web console (HTTP/HTTPS), a Telnet console or a Windows utility, as well as the built-in LCD panel and push buttons.

Q: Is the unit rack mountable?
A: Yes. It has a metal 19-inch rackmount housing, 440 mm wide without mounting ears and 480 mm with ears.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
