Moxa NPort 5650-8-M-SC | 8-Port RS-232/422/485 Device Server, SC Fibre

Authorised Moxa Partner

SKU:NPort 5650-8-M-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

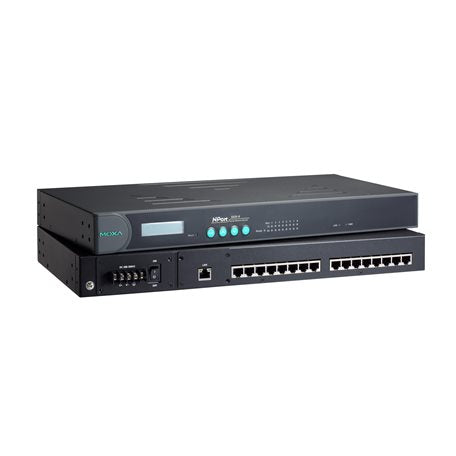

The Moxa NPort 5650-8-M-SC is an 8-port RS-232/422/485 rackmount serial device server with a multi-mode fibre SC 100BaseFX network connection. It lets you connect serial equipment such as PLCs, meters, barcode readers and legacy instruments to an Ethernet network, with the fibre uplink suited to environments where electrical noise or longer cable runs make copper impractical.

This 19-inch rackmount model accepts 100-240 VAC and supports Real COM, TCP server, TCP client, UDP, Pair Connection, Reverse Telnet, RFC2217 and Ethernet Modem modes. It can be configured by Telnet, web browser or Windows utility, and supports SNMP MIB-II for network management.

Features

- Supports Real COM, TCP server, TCP client, UDP, Pair Connection, Reverse Telnet, RFC2217 and Ethernet Modem operation modes
- Configuration by Telnet, web browser or Windows utility
- SNMP MIB-II for network management
- LED indicators for system, serial Tx/Rx and Ethernet status
- Drivers support the RTS, CTS, DTR, DSR and DCD control signals

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports (8-pin RJ45)
- Ethernet: 100BaseFX multi-mode fibre, SC connector
- Rackmount (19-inch) form factor
- Input voltage: 100-240 VAC
- Power input current: 174 mA @ 100 VAC
- Weight: 2,380 g (5.25 lb)
- MTBF: 678,053 hrs

FAQs

Q: What type of network connection does the NPort 5650-8-M-SC use?
A: It uses a 100BaseFX multi-mode fibre port with an SC connector for the Ethernet uplink.

Q: How many serial ports does it have and which interfaces are supported?
A: It has 8 serial ports with RJ45 connectors, supporting RS-232, RS-422 and RS-485.

Q: What power input does this model require?
A: It runs from 100-240 VAC mains power.

Q: Which operation modes are available?
A: Real COM, TCP server, TCP client, UDP, Pair Connection, Reverse Telnet, RFC2217 and Ethernet Modem modes are supported.

Q: How is the device configured and managed?
A: Configuration is available by Telnet, web browser or Windows utility, and SNMP MIB-II is supported for network management.

Q: Is this unit rack mountable?
A: Yes, it is a 19-inch rackmount device server.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
