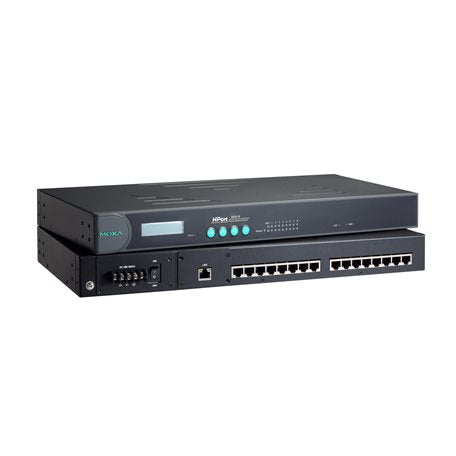

Moxa NPort 5650-8-HV-T | NPort 5650 8-Port Serial Device Server, HV 88-300 VDC

Authorised Moxa Partner

SKU:NPort 5650-8-HV-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 5650-8-HV-T is an 8-port rackmount serial device server that connects RS-232/422/485 serial devices to an Ethernet network. Built for industrial automation and remote equipment access, this high-voltage wide-temperature model accepts 88 to 300 VDC power and operates from -40 to 85°C, making it suited to harsh environments and facilities with DC power distribution.

Each of the eight serial ports uses an 8-pin RJ45 connector with baud rates up to 921.6 kbps, and the unit connects to the network through a 10/100BaseT(X) Ethernet port with built-in 1.5 kV magnetic isolation. Real COM and TTY drivers cover Windows, Linux, Unix and Android, while operation modes include Real COM, TCP Server/Client, UDP, Pair Connection, Reverse Telnet and Ethernet Modem. The metal 19-inch rackmount housing suits control rooms and equipment cabinets.

Features

- Serial ports support RS-232, RS-422 and RS-485 on 8-pin RJ45 connectors
- Real COM and TTY drivers for Windows, Linux, Unix and Android
- Operation modes include Real COM, TCP Server/Client, UDP, Pair Connection, Reverse Telnet and Ethernet Modem
- Adjustable pull high/low resistors and 120 ohm terminator set via DIP switches
- ADDC automatic data direction control for RS-485
- Built-in watchdog timer (WDT) for automatic reboot
- Wide-temperature, high-voltage design with 88-300 VDC input
- Configuration via web console, Windows utility or Telnet

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports, 8-pin RJ45 connectors
- 1 x 10/100BaseT(X) Ethernet port (RJ45) with 1.5 kV magnetic isolation
- Baud rate: 50 bps to 921.6 kbps
- Input voltage: 88 to 300 VDC
- Input current: 152 mA @ 88 VDC
- Operating temperature: -40 to 85°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Metal housing, 19-inch rack mounting
- Dimensions with ears: 480 x 45 x 198 mm
- Dimensions without ears: 440 x 45 x 198 mm
- Weight: 3,720 g
- MTBF: 627,078 hrs (Telcordia)
- Safety: UL 60950-1
- EMC: EN 55032/24, FCC Part 15B Class A

FAQs

Q: What serial interfaces does the NPort 5650-8-HV-T support?
A: Each of its 8 serial ports supports RS-232, RS-422 and RS-485 on an 8-pin RJ45 connector, with baud rates from 50 bps to 921.6 kbps.

Q: What power input does this model accept?
A: This HV model accepts 88 to 300 VDC, with an input current of 152 mA at 88 VDC.

Q: What temperature range can it operate in?
A: The -T wide-temperature model operates from -40 to 85°C, suited to harsh industrial environments.

Q: Which operating systems have drivers for it?
A: Real COM and TTY drivers are available for Windows, Linux, Unix and Android. It also supports socket modes such as TCP Server, TCP Client and UDP.

Q: How is the NPort 5650-8-HV-T configured and managed?
A: It can be configured through a web console (HTTP), the Windows utility or a Telnet console. Management protocols include SNMPv1, DHCP, DNS, SMTP and SNTP.

Q: How does it mount and what network port does it have?
A: It is a metal 19-inch rackmount unit with a single 10/100BaseT(X) RJ45 Ethernet port and built-in 1.5 kV magnetic isolation.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
