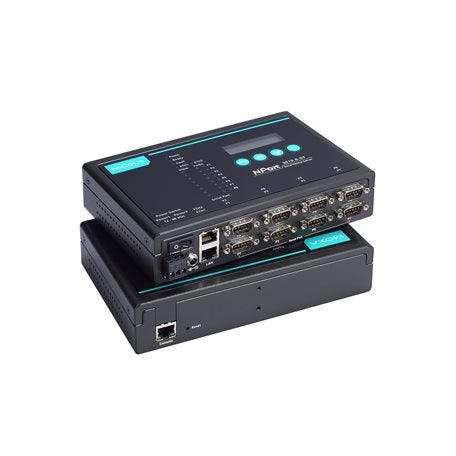

Moxa NPort 5650-8-DT-T | 8-Port Serial Device Server, RS-232/422/485, DB9, -40 to 75°C

Authorised Moxa Partner

SKU:NPort 5650-8-DT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 5650-8-DT-T is an 8-port RS-232/422/485 serial device server that connects serial devices to a 10/100M Ethernet network. This wide-temperature model operates from -40 to 75°C and uses DB9 male serial connectors, making it suited to industrial automation, building management and remote monitoring deployments where serial equipment needs network access.

It supports TCP server, TCP client, UDP and Real COM socket modes, and can be configured by Telnet, web browser or Windows utility, with an LCD panel for easy IP address setup. Dual Ethernet ports allow cascade wiring, and the metal housing supports desktop, DIN-rail and wall mounting with optional kits.

Features

- 8 serial ports supporting RS-232/422/485
- Wide-temperature operation from -40 to 75°C
- Compact desktop design with metal housing
- 10/100M auto-sensing Ethernet with dual ports for cascade wiring
- Easy IP address configuration with LCD panel
- Configure by Telnet, web browser or Windows utility
- Socket modes: TCP server, TCP client, UDP and Real COM
- SNMP MIB-II for network management
- Selectable 1 kilo-ohm / 150 kilo-ohm pull high/low resistors and 120-ohm terminator via DIP switches
- Dual power inputs via terminal block and power jack

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports, DB9 male
- 2 x 10/100BaseT(X) Ethernet ports (RJ45) with 1.5 kV built-in magnetic isolation
- Baudrate up to 921.6 kbps
- Serial parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- Input voltage: 12 to 48 VDC, 2 power inputs (terminal block and power jack)
- Reverse polarity protection supported
- Operating temperature: -40 to 75°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Metal housing, desktop, DIN-rail and wall mounting (optional kits)
- Dimensions (without ears): 197 x 44 x 125 mm
- Built-in WDT and RTC, LCD panel
- MTBF: 836,374 hrs (Telcordia)
- Certifications: EN 55032/24, FCC Part 15B Class A, UL 60950-1, RoHS, CRoHS, WEEE

FAQs

Q: What serial interfaces does the NPort 5650-8-DT-T support?
A: Each of the 8 DB9 male serial ports supports RS-232, RS-422 and RS-485, selectable per port.

Q: What is the operating temperature range of this model?
A: The -T model operates from -40 to 75°C, suiting harsh industrial environments.

Q: How is the device configured?
A: It can be configured via Serial Console, Telnet Console, Web Console (HTTP/HTTPS) or the Windows utility, and the LCD panel allows easy IP address setup.

Q: What operating modes are available?
A: Socket modes include TCP server, TCP client, UDP and Real COM.

Q: What mounting options are available?
A: The metal housing supports desktop placement, with optional kits for DIN-rail and wall mounting.

Q: What power input does it require?
A: It accepts 12 to 48 VDC through either a removable 3-contact terminal block or a power input jack, with two power inputs and reverse polarity protection.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
