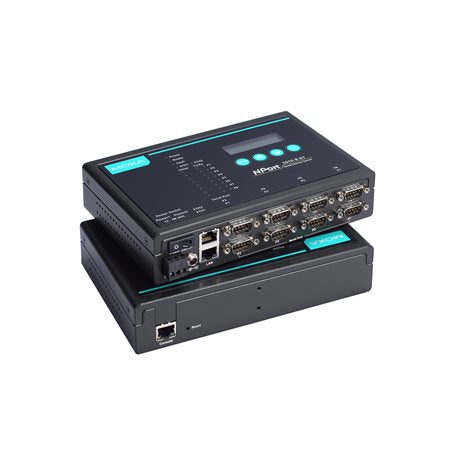

• Moxa NPort 5650-8-DT-J black 8-port RS-232/422/485 device server with teal lighting
1 1

Moxa

Moxa NPort 5650-8-DT-J | 8-Port RS-232/422/485 Serial Device Server, 12-48 VDC

Moxa NPort 5650-8-DT-J | 8-Port RS-232/422/485 Serial Device Server, 12-48 VDC

Authorised Moxa Partner

NPort 5650-8-DT-J

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort 5650-8-DT-J is an 8-port RS-232/422/485 serial device server that connects serial devices to a 10/100M Ethernet network. It uses 8-pin RJ45 serial connectors, supports a 12 to 48 VDC power input and operates from 0 to 55 C, with no serial isolation on this model. It suits control rooms, building automation and data collection sites that need to bring legacy serial equipment onto an IP network.

A compact metal housing supports desktop, DIN-rail or wall mounting using optional kits. Dual 10/100BaseT(X) Ethernet ports, an LCD panel for quick IP setup, and configuration by Telnet, web console or Windows utility simplify deployment. Socket modes include TCP server, TCP client, UDP and Real COM, with Real COM/TTY drivers for Windows, Linux and Unix systems.

Features

- 8 serial ports supporting RS-232/422/485
- Compact desktop design with optional DIN-rail and wall mounting
- 10/100M auto-sensing Ethernet
- Easy IP address configuration with LCD panel and push buttons
- Configure by Telnet, web browser (HTTP/HTTPS) or Windows utility
- Socket modes: TCP server, TCP client, UDP and Real COM
- SNMP MIB-II for network management
- DIP switch selectable pull high/low resistors and terminator for RS-485
- Dual power inputs via terminal block and power jack
- Real COM/TTY drivers for Windows, Linux and fixed TTY for other Unix systems
- Built-in watchdog timer, buzzer and real-time clock
- HTTPS (TLS 1.2) and SNMPv3 security

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports
- Serial connector: 8-pin RJ45
- 2 x 10/100BaseT(X) Ethernet ports (RJ45)
- Built-in 1.5 kV magnetic isolation on Ethernet ports
- Serial isolation: None
- Baudrates up to 921.6 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- RS-485 pull high/low resistors: 1 kilo-ohm, 150 kilo-ohms; 120 ohm terminator
- Console port: RS-232, 3-pin
- Input voltage: 12 to 48 VDC, 2 power inputs (terminal block and power jack)
- Input current: 615 mA at 12 VDC
- Reverse polarity protection supported
- Metal housing, 197 x 44 x 125 mm without ears
- Weight: 0.82 kg
- Operating temperature: 0 to 55 C
- Storage temperature: -40 to 75 C
- Ambient humidity: 5 to 95% non-condensing
- Safety: UL 60950-1; EMI: CISPR 32, FCC Part 15B Class A
- MTBF: 836,374 hrs (Telcordia Bellcore)

FAQs

Q: Which serial standards does the NPort 5650-8-DT-J support?
A: Each of the 8 serial ports can be set to RS-232, RS-422 or RS-485 and uses an 8-pin RJ45 connector.

Q: Does this model provide serial isolation?
A: No. This model has no serial isolation. Moxa offers separate -I models with 2 kV isolation. The Ethernet ports include built-in 1.5 kV magnetic isolation.

Q: What power input does it use?
A: It accepts 12 to 48 VDC through either a removable 3-contact terminal block or a power input jack, with reverse polarity protection. A power adapter is not described as included in the specifications.

Q: How is the device configured?
A: You can set the IP address from the LCD panel and push buttons, then configure it through a serial console, Telnet, web console (HTTP/HTTPS) or the Windows utility.

Q: Which operating modes and drivers are available?
A: Socket modes include TCP server, TCP client, UDP and Real COM. Real COM/TTY drivers are available for Windows, Linux and fixed TTY for other Unix systems.

Q: Can it be mounted on a DIN rail or wall?
A: Yes. It sits on a desktop as standard and supports DIN-rail or wall mounting with optional kits.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
