Moxa NPort 5650-8-DT | NPort 5600-DT 8-Port RS-232/422/485 Serial Device Server

Authorised Moxa Partner

SKU:NPort 5650-8-DT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

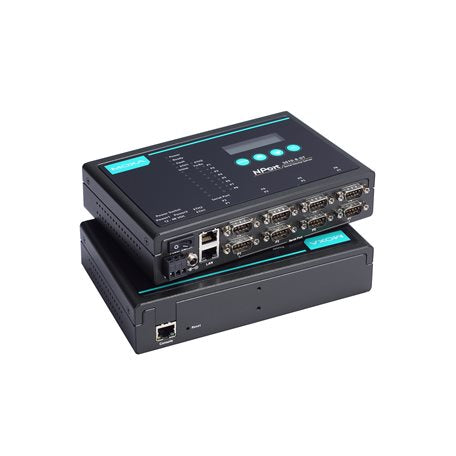

The Moxa NPort 5650-8-DT is a desktop 8-port serial device server that connects RS-232, RS-422 and RS-485 devices (DB9 male) to an Ethernet network. It accepts 12 to 48 VDC input through two power inputs, supports baudrates up to 921.6 kbps, and includes an LCD panel with push buttons for on-device configuration.

Built in a metal housing, it adds two 10/100BaseT(X) Ethernet ports, automatic data direction control for RS-485, a watchdog timer, buzzer and RTC. Real COM and Real TTY drivers cover Windows, Linux and macOS, while HTTPS and SNMPv3 support secure management. DIN-rail and wall mounting are available with optional kits.

Features

- Compact desktop form factor with 8 serial ports
- LCD panel and push buttons for easy configuration
- Real COM and Real TTY drivers for Windows, Linux and macOS
- Fixed TTY drivers for various UNIX systems and Android API support
- Dual power inputs with reverse polarity protection
- Built-in watchdog timer, buzzer and RTC
- Secure HTTPS and SNMPv3 support
- Automatic data direction control (ADDC) for RS-485

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232/422/485 serial ports, DB9 male
- 2 x 10/100BaseT(X) Ethernet ports, RJ45
- Baudrate: 50 bps to 921.6 kbps
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- RS-485 pull high/low resistor: 1 kilo-ohm, 150 kilo-ohms; terminator: 120 ohms
- Input voltage: 12 to 48 VDC, 2 power inputs (terminal block and power jack)
- Input current: 615 mA @ 12 VDC
- Reverse polarity protection supported
- Security: HTTPS (TLS 1.2), SNMPv3, AES-128, RSA-1024, SHA-1, SHA-256
- Magnetic isolation protection: 1.5 kV
- Serial surge protection: 0.5 kV
- Metal housing, desktop mount; DIN-rail and wall mounting with optional kits
- Dimensions (without ears): 197 x 44 x 125 mm
- Weight: 1,590 g
- Operating temperature: 0 to 55°C
- Storage temperature: -40 to 75°C
- Humidity: 5 to 95% non-condensing
- MTBF: 836,374 hrs (Telcordia)

FAQs

Q: What serial interfaces does the NPort 5650-8-DT support?
A: Each of the 8 DB9 male ports supports RS-232, RS-422 and RS-485, selectable per port.

Q: What is the power input range?
A: It accepts 12 to 48 VDC and has two power inputs (terminal block and power jack) with reverse polarity protection.

Q: How is the device configured?
A: It can be configured through the built-in LCD panel and push buttons, or via serial console, Telnet console, web console (HTTP/HTTPS) or the Windows utility.

Q: Which operating systems are supported by the drivers?
A: Real COM and Real TTY drivers are available for Windows, Linux and macOS, with fixed TTY drivers for various UNIX systems and Android API support.

Q: Can it be mounted on a DIN rail or wall?
A: Yes. It is a desktop unit by default, and DIN-rail or wall mounting is available with optional kits.

Q: What is the maximum serial baudrate?
A: Standard baudrates range from 50 bps up to 921.6 kbps.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
