Moxa NPort 5650-16-T | NPort 5650 16-Port RS-232/422/485 Serial Device Server, 100-240 VAC, -40 to

Authorised Moxa Partner

SKU:NPort 5650-16-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

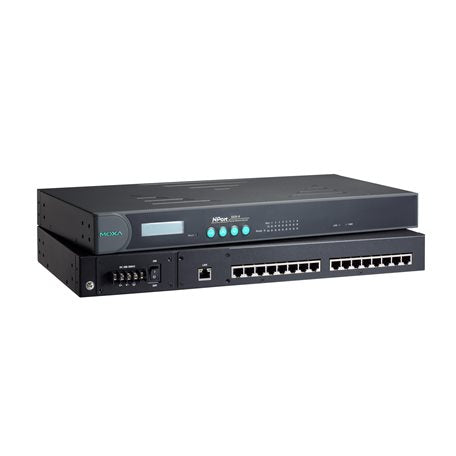

The NPort 5650-16-T is a 16-port RS-232/422/485 rackmount serial device server that connects serial equipment to an Ethernet LAN. It provides 16 serial ports on 8-pin RJ45 connectors and a 10/100BaseT(X) Ethernet port, with a 100 to 240 VAC power input. This -T model is rated for a wide -40 to 75°C operating range, making it suited to harsh or unconditioned environments where a standard unit would not be suitable.

Built in a metal 19-inch rack-mount housing with an LCD panel and push buttons for on-device configuration, the NPort 5650-16-T supports Real COM and TTY drivers, TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217 and Pair Connection modes. Secure management is available through HTTPS (TLS 1.2) and SNMPv3, with 1.5 kV built-in magnetic isolation protecting the Ethernet port.

Features

- Makes serial devices network-ready over an IP-based Ethernet LAN
- Real COM and TTY drivers for Windows, Linux and macOS
- Supports TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217 and Pair Connection modes
- Automatic Data Direction Control for RS-485
- Built-in watchdog timer (WDT) for automatic reboot
- Secure configuration via HTTPS (TLS 1.2) and SNMPv3
- LCD panel and push buttons for on-device configuration
- Android API support (Android 3.1.x and later)
- Wide -40 to 75°C operating temperature range

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports (8-pin RJ45)
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Baudrate: 50 bps to 921.6 kbps (standard rates)
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
- RS-485 pull high/low resistor: 1 kilo-ohm, 150 kilo-ohms; 120 ohm terminator
- Automatic Data Direction Control (ADDC) for RS-485
- Input voltage: 100 to 240 VAC, 47 to 63 Hz
- Input current: 158 mA @ 100 VAC
- Magnetic isolation protection: 1.5 kV (built-in)
- Operating temperature: -40 to 75°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Housing: metal, 19-inch rack mounting
- Dimensions (with ears): 480 x 45.5 x 198.25 mm
- Dimensions (without ears): 440 x 45.5 x 198.25 mm
- Weight: 2,510 g
- EMI: CISPR 32, FCC Part 15B Class A
- Safety: UL 62368-1
- Warranty: 5 years

FAQs

Q: What serial interfaces does the NPort 5650-16-T support?
A: It provides 16 serial ports that each support RS-232, RS-422 and RS-485 on 8-pin RJ45 connectors, with baudrates from 50 bps up to 921.6 kbps.

Q: What is the operating temperature range?
A: The -T model is rated for -40 to 75°C, a wider range than the standard NPort 5650-16.

Q: What power input does this model use?
A: It takes a 100 to 240 VAC, 47 to 63 Hz input and draws 158 mA at 100 VAC.

Q: Which operation modes are available?
A: Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection, Reverse Telnet and RFC2217 modes are supported.

Q: How is the device configured and secured?
A: Configuration is available through the Telnet console, web console (HTTP/HTTPS), the Windows utility, or the LCD panel and push buttons. Secure management uses HTTPS (TLS 1.2) and SNMPv3.

Q: How is the NPort 5650-16-T mounted?
A: It is designed for 19-inch rack mounting in a metal housing, measuring 440 mm wide without the mounting ears and 480 mm with them.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
