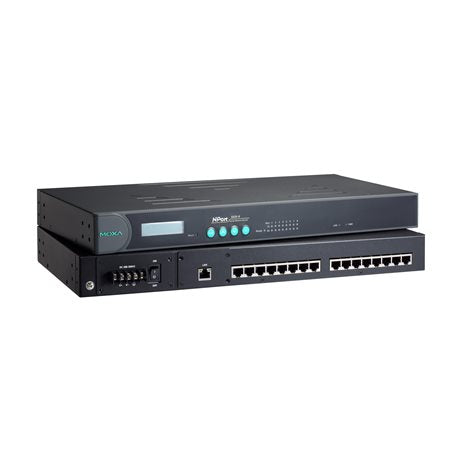

Moxa NPort 5650-16-S-SC | NPort 5650 16-Port RS-232/422/485 Device Server, SC Single-Mode

Authorised Moxa Partner

SKU:NPort 5650-16-S-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The NPort 5650-16-S-SC is a 16-port RS-232/422/485 rackmount serial device server that connects serial devices to an IP-based Ethernet LAN. It pairs a 100BaseFX single-mode fibre (SC connector) network interface, with a typical reach of 40 km, with a 10/100BaseT(X) RJ45 port, making it well suited to long-distance links in plants, campuses and remote sites.

A 19-inch metal housing with an LCD panel and push buttons allows on-device configuration, and the unit runs from 100 to 240 VAC. It supports Real COM, TCP Server/Client, UDP, Reverse Telnet and RFC2217 operation modes, with drivers for Windows, Linux and macOS, and security support including HTTPS (TLS 1.2) and SNMPv3.

Features

- Makes serial devices network-ready for connection to an IP-based Ethernet LAN
- Single-mode fibre Ethernet interface for long-distance links up to 40 km typical
- Supports Real COM, TCP Server/Client, UDP, Reverse Telnet and RFC2217 operation modes
- Automatic data direction control (ADDC) for RS-485
- Configuration via web console, Telnet console or Windows utility
- Security support including HTTPS (TLS 1.2) and SNMPv3
- Built-in watchdog timer (WDT)
- LCD panel and push buttons for on-device configuration
- Windows Real COM, Linux Real TTY and macOS Fixed TTY drivers, plus Android API

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports (8-pin RJ45)
- 1 x 10/100BaseT(X) RJ45 port with 1.5 kV magnetic isolation
- 100BaseFX single-mode fibre (SC connector), typical distance 40 km, 1310 nm
- Baudrate 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- RS-485 pull high/low resistor 1 kilo-ohm or 150 kilo-ohms, 120 ohm terminator
- Input voltage 100 to 240 VAC, 47 to 63 Hz, 164 mA @ 100 VAC
- Metal housing, 19-inch rack mount, LCD panel with push buttons
- Dimensions with ears 480 x 45.5 x 198.25 mm, weight 2,500 g
- Operating temperature 0 to 60°C, humidity 5 to 95% non-condensing
- EMI: CISPR 32, FCC Part 15B Class A; Safety: UL 62368-1
- MTBF 517,019 hrs (MIL-HDBK-217F), 5-year warranty

FAQs

Q: What network interfaces does the NPort 5650-16-S-SC provide?
A: It has one 100BaseFX single-mode fibre interface with an SC connector and one 10/100BaseT(X) RJ45 port.

Q: How far can the single-mode fibre link reach?
A: The 100BaseFX single-mode interface has a typical distance of 40 km at 1310 nm, with a 29 dB link budget.

Q: Which serial standards does it support?
A: All 16 ports support RS-232, RS-422 and RS-485 through 8-pin RJ45 connectors, with automatic data direction control for RS-485.

Q: What operation modes are supported?
A: Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection, Reverse Telnet and RFC2217 modes are supported.

Q: What power input does this model use?
A: It operates from 100 to 240 VAC at 47 to 63 Hz and draws 164 mA at 100 VAC.

Q: How is the device configured?
A: Use the web console (HTTP/HTTPS), Telnet console or Windows utility, or the built-in LCD panel and push buttons.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
