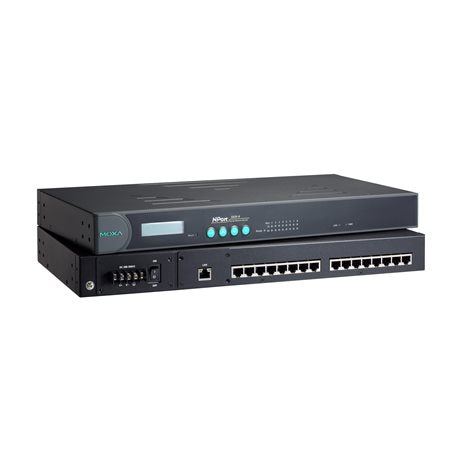

Moxa NPort 5650-16-HV-T | 16-Port Serial Device Server, 88-300 VDC

Authorised Moxa Partner

SKU:NPort 5650-16-HV-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 5650-16-HV-T is a 16-port RS-232/422/485 rackmount serial device server that connects serial equipment to a 10/100 Ethernet network. It provides 16 serial ports on 8-pin RJ45 connectors, accepts a high-voltage 88 to 300 VDC power input, and operates across a wide -40 to 85°C temperature range, making it well suited to industrial automation, utilities and harsh-environment racks.

Each port supports baudrates from 50 bps up to 921.6 kbps, with operation modes including Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217 and Pair Connection. It is configured through a web console (HTTP/HTTPS), Telnet console or Windows utility, and supports HTTPS (TLS 1.2) and SNMPv3 for secure management. Driver support covers Windows Real COM, Linux Real TTY and macOS fixed TTY, with an Android API available.

Features

- Real COM, TCP Server/Client, UDP, Reverse Telnet, RFC2217, Ethernet Modem and Pair Connection operation modes
- Automatic data direction control (ADDC) for RS-485 ports
- Built-in 1.5 kV magnetic isolation on the Ethernet port
- Windows Real COM, Linux Real TTY, macOS fixed TTY and Android API support
- Configuration via web console (HTTP/HTTPS), Telnet console or Windows utility
- HTTPS (TLS 1.2) and SNMPv3 security, with AES-128 and SHA-256 encryption support
- SNMPv1/v2c, LLDP, DHCP, DNS and SNTP for network management and time sync
- Built-in watchdog timer (WDT) for automatic reboot
- Wide -40 to 85°C operating temperature range for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports, 8-pin RJ45 connectors
- 1 x 10/100BaseT(X) Ethernet port (RJ45) with 1.5 kV built-in magnetic isolation
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2; parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
- RS-485 pull high/low resistor: 1 kilo-ohm or 150 kilo-ohms; 120 ohm terminator
- Input voltage: 88 to 300 VDC; input current 152 mA @ 88 VDC
- Operating and storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- 19-inch rackmount metal housing
- Dimensions with ears: 480 x 45.5 x 198.25 mm; without ears: 440 x 45.5 x 198.25 mm
- Weight: 3,820 g
- Certifications: EN 55032/35, CISPR 32, FCC Part 15B Class A, UL 62368-1
- MTBF: 506,093 hrs (Telcordia TR/SR)
- 5-year warranty

FAQs

Q: What power input does the NPort 5650-16-HV-T use?
A: It uses a high-voltage DC input of 88 to 300 VDC, drawing 152 mA at 88 VDC.

Q: Which serial standards and connectors does it support?
A: All 16 ports support RS-232, RS-422 and RS-485 on 8-pin RJ45 connectors, with a baudrate of 50 bps up to 921.6 kbps.

Q: What operating temperature range is supported?
A: This -T model operates from -40 to 85°C, suitable for outdoor cabinets, substations and other harsh environments.

Q: How is the device server configured and managed?
A: Through a web console (HTTP/HTTPS), Telnet console or the Windows utility. It also supports SNMPv1/v2c/v3, with HTTPS (TLS 1.2) and SNMPv3 for secure management.

Q: Which operating systems are supported for virtual serial ports?
A: Real COM drivers are available for Windows, Real TTY drivers for Linux, and fixed TTY drivers for macOS, with an Android API also supported.

Q: Is it rack mountable?
A: Yes. It has a 19-inch rackmount metal housing, 440 mm wide without ears and 480 mm with the mounting ears, in a 45.5 mm (1U) height.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
