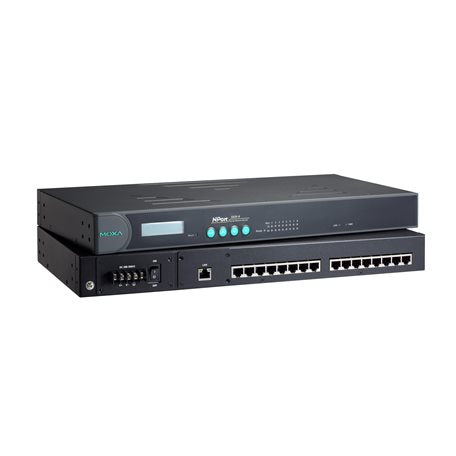

Moxa NPort 5650-16 | 16-Port RS-232/422/485 Device Server, RJ45, 100-240 VAC

Authorised Moxa Partner

SKU:NPort 5650-16

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa NPort 5650-16 is a 16-port RS-232/422/485 rackmount serial device server that connects serial devices to an Ethernet network. It uses 8-pin RJ45 serial connectors, a 10/100 Mbps auto-sensing Ethernet port and a 100 to 240 VAC power input, making it well suited to server rooms and equipment racks where many serial devices need to be managed over IP.

The NPort 5600 series supports TCP server, TCP client, UDP and Real COM socket modes, so it can integrate serial equipment with both legacy COM-based software and modern networked applications. Configuration is available through Telnet, a web console or a Windows utility, and the standard 19-inch rackmount chassis fits directly into existing racks.

Features

- Easy IP address configuration with LCD panel (excluding wide temperature models)
- Configuration via Telnet, web console or Windows utility
- Socket modes: TCP server, TCP client, UDP, Real COM
- SNMP MIB-II for network management
- Software-selectable RS-232, RS-422 or RS-485 mode on each port
- Standard 19-inch rackmount chassis for rack deployment

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232/422/485 serial ports
- 8-pin RJ45 serial connectors
- 10/100 Mbps auto-sensing Ethernet
- 100 to 240 VAC power input
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
- RS-485 pull high/low resistor: 1 kilo-ohm or 150 kilo-ohms
- RS-485 terminator: 120 ohms
- 15 KV ESD protection
- Standard 19-inch rackmount size

FAQs

Q: How many serial ports does the Moxa NPort 5650-16 provide?
A: It provides 16 serial ports, each supporting RS-232, RS-422 and RS-485 communication, with 8-pin RJ45 connectors.

Q: What socket operation modes does the NPort 5650-16 support?
A: It supports TCP server, TCP client, UDP and Real COM modes, allowing both networked and COM-based serial applications.

Q: How is the NPort 5650-16 powered?
A: It runs from a 100 to 240 VAC power input, suitable for standard mains supply in racks and server rooms.

Q: How do I configure the IP address on the NPort 5650-16?
A: You can set the IP address from the LCD panel on standard temperature models, or configure the device through Telnet, the web console or the Windows utility.

Q: Does the NPort 5650-16 support network management?
A: Yes, it supports SNMP MIB-II for monitoring and management on your network.

Q: Can it be installed in a standard rack?
A: Yes, it is a standard 19-inch rackmount unit designed to fit directly into existing equipment racks.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
