Moxa NPort 5630-16 | NPort 5600 16-Port RS-422/485 Serial Device Server, RJ45, 100-240 VAC

Authorised Moxa Partner

SKU:NPort 5630-16

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

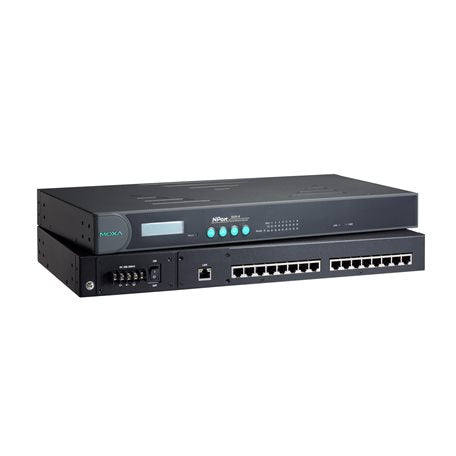

The Moxa NPort 5630-16 is a 16-port RS-422/485 rackmount serial device server that connects serial devices to an Ethernet network through 8-pin RJ45 serial ports. It runs from a 100 to 240 VAC power input and supports baudrates up to 921.6 kbps, making it well suited to server rooms, telemetry and industrial automation installations that need to bring many serial devices onto an IP network.

It offers Real COM, TCP Server, TCP Client, UDP, Reverse Telnet and RFC2217 operation modes, with Real COM/TTY drivers for Windows and Linux. A front-panel LCD and push buttons simplify IP address setup, and configuration is also available through a web console, Telnet or the Windows utility. Security options include HTTPS (TLS 1.2) and SNMPv3, and a standard 19-inch metal housing allows direct rack mounting.

Features

- Standard 19-inch rackmount size
- Easy IP address configuration with LCD panel and push buttons
- Configure by Telnet, web browser (HTTP/HTTPS) or Windows utility
- Socket modes: TCP server, TCP client, UDP
- Real COM/TTY drivers for Windows and Linux, plus fixed TTY for macOS
- SNMP MIB-II for network management
- Tx/Rx LEDs for serial ports on the front panel for easy maintenance
- Automatic Data Direction Control (ADDC) for RS-485
- Built-in watchdog timer (WDT) for automatic reboot
- HTTPS (TLS 1.2) and SNMPv3 security protocols

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-422/485 serial ports (8-pin RJ45)
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, XON/XOFF (RTS/CTS and DTR/DSR for RS-232 only)
- RS-485 pull high/low resistor: 1 kilo-ohm, 150 kilo-ohms; terminator: 120 ohms
- Automatic Data Direction Control (ADDC) for RS-485
- Magnetic isolation protection: 1.5 kV (built-in)
- Input voltage: 100 to 240 VAC, 47 to 63 Hz
- Input current: 152 mA @ 100 VAC
- Metal housing, 19-inch rackmount
- Dimensions (with ears): 480 x 45.5 x 198 mm
- Dimensions (without ears): 440 x 45.5 x 198 mm
- Weight: 2,560 g
- Operating temperature: 0 to 60°C
- Storage temperature: -20 to 70°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- MTBF: 618,263 hrs (MIL-HDBK-217F)

FAQs

Q: What serial interfaces does the NPort 5630-16 support?
A: It provides 16 serial ports supporting RS-422 and RS-485 through 8-pin RJ45 connectors, with baudrates from 50 bps up to 921.6 kbps.

Q: What power input does it use?
A: It has a built-in 100 to 240 VAC, 47 to 63 Hz power input, so no external adapter is required.

Q: How is the device configured?
A: You can set the IP address from the front-panel LCD and push buttons, and configure it through the web console (HTTP/HTTPS), Telnet console or the Windows utility.

Q: Which operation modes are available?
A: Modes include Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection, Reverse Telnet and RFC2217.

Q: Does it need a direction control signal for RS-485?
A: No. It uses Automatic Data Direction Control (ADDC), which handles RS-485 data direction automatically.

Q: Which operating systems have driver support?
A: Real COM/TTY drivers are available for Windows and Linux, with a fixed TTY driver for macOS.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
