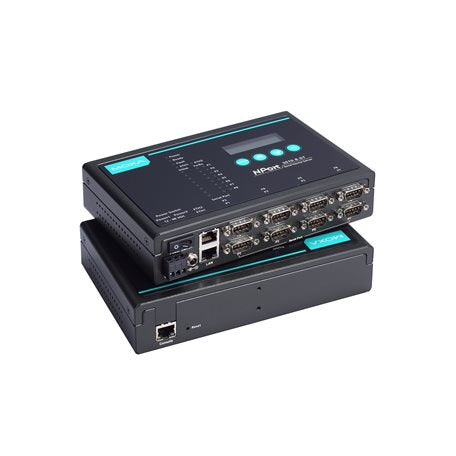

• Moxa NPort 5610-8-DT-T black switch with teal lights and ports
1 1

Moxa

Moxa NPort 5610-8-DT-T | NPort 5600-DT 8-Port RS-232 Serial Device Server, DB9, -40 to 75C

Moxa NPort 5610-8-DT-T | NPort 5600-DT 8-Port RS-232 Serial Device Server, DB9, -40 to 75C

Authorised Moxa Partner

NPort 5610-8-DT-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort 5610-8-DT-T is an 8-port RS-232 serial device server that connects legacy serial equipment to a 10/100M Ethernet network. It is a compact, metal-housed desktop unit with DB9 male serial connectors and a wide operating range of -40 to 75°C, suited to industrial cabinets, outdoor enclosures and unheated sites. As a -T model it ships without a power adapter, taking 12 to 48 VDC through a terminal block or power jack.

Two 10/100BaseT(X) RJ45 Ethernet ports allow cascade wiring, and the unit supports TCP server, TCP client, UDP and Real COM socket modes. Configuration is available via Telnet, web console (HTTP/HTTPS), serial console or the Windows utility, with SNMP MIB-II support for network management. DIN-rail and wall-mounting kits are available as options.

Features

- 8 serial ports in a compact desktop design
- 10/100M auto-sensing Ethernet with two Ethernet ports for cascade wiring
- Wide operating temperature range of -40 to 75°C
- Socket modes: TCP server, TCP client, UDP and Real COM
- Configurable via Telnet, web browser (HTTP/HTTPS), serial console or Windows utility
- SNMP MIB-II support for network management
- Dual power inputs via terminal block and power jack with reverse polarity protection
- Built-in watchdog timer, buzzer and RTC
- LED indicators for system, serial Tx/Rx and Ethernet status
- Optional DIN-rail and wall-mounting kits

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232 serial ports, DB9 male
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), usable for cascade wiring
- Baudrate 50 bps to 921.6 kbps
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- Input voltage 12 to 48 VDC, 2 power inputs (terminal block and power jack)
- Input current 611 mA @ 12 VDC
- Operating temperature -40 to 75°C (-40 to 167°F)
- Storage temperature -40 to 75°C (-40 to 167°F)
- Ambient relative humidity 5 to 95% (non-condensing)
- Metal housing, desktop installation; DIN-rail and wall mounting with optional kits
- Dimensions 197 x 44 x 125 mm (229 x 46 x 125 mm with ears)
- Weight 1,320 g
- 1.5 kV built-in magnetic isolation on Ethernet, 0.5 kV serial surge protection
- Security: HTTPS (TLS 1.2), SNMPv3, AES-128, RSA-1024, SHA-1, SHA-256
- MTBF 836,374 hrs (Telcordia/Bellcore)
- Package: device server, wall-mounting kit, RJ45 Ethernet cable, quick installation guide, warranty card; no power adapter

FAQs

Q: Does the NPort 5610-8-DT-T include a power adapter?
A: No. As a -T model it ships without a power adapter. It accepts 12 to 48 VDC through the terminal block or power jack, so a suitable DC supply must be sourced separately.

Q: What serial standard and connector does this model use?
A: It provides 8 RS-232 serial ports on DB9 male connectors, with RTS/CTS, DTR/DSR and XON/XOFF flow control and baudrates up to 921.6 kbps.

Q: What temperature range is this model rated for?
A: The -T variant operates from -40 to 75°C (-40 to 167°F), making it suitable for harsh industrial environments.

Q: Can the two Ethernet ports be used to daisy-chain devices?
A: Yes. The two 10/100BaseT(X) RJ45 ports support cascade wiring, which can reduce the number of switch ports and cable runs required.

Q: Can it be mounted on a DIN rail or wall?
A: Yes. It is designed for desktop use, and a wall-mounting kit is included in the box. DIN-rail mounting is available with an optional kit.

Q: How is the device configured and managed?
A: Configuration is available through a serial console, Telnet, a web console (HTTP/HTTPS) or the Windows utility. It also supports SNMP MIB-II, SNMPv3 and HTTPS (TLS 1.2) for management and security.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
