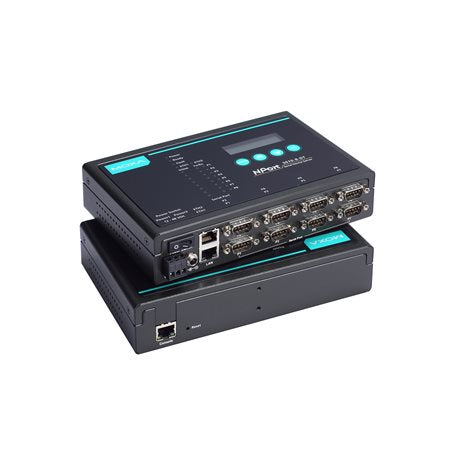

• Moxa NPort 5610-8-DT-J black switch with teal lights, 8 RS232 ports
1 1

Moxa

Moxa NPort 5610-8-DT-J | NPort 5600-DT 8-Port RS-232 Serial Device Server, RJ45

Moxa NPort 5610-8-DT-J | NPort 5600-DT 8-Port RS-232 Serial Device Server, RJ45

Authorised Moxa Partner

NPort 5610-8-DT-J

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The NPort 5610-8-DT-J is a compact desktop 8-port RS-232 serial device server with 8-pin RJ45 serial connectors, designed to connect serial equipment to an Ethernet network. It suits sites where rack or DIN-rail mounting is not available, and accepts 12-48 VDC power with an operating range of 0 to 55°C.

Two 10/100BaseT(X) Ethernet ports can be cascaded like switch ports, removing the need for a separate switch in daisy-chain wiring. An LCD panel and push buttons simplify IP address setup, and the unit supports TCP Server, TCP Client, UDP and Real COM operation modes, with web, Telnet, serial console and Windows utility configuration.

Features

- Two Ethernet ports usable as switch ports for cascade wiring, so no separate switch is needed
- LCD panel and push buttons for easy IP address configuration
- Compact desktop form factor for locations without rack or DIN-rail mounting
- Configuration via web console, Telnet console, serial console or Windows utility
- Socket operation modes include TCP Server, TCP Client, UDP and Real COM
- SNMP network management, with a built-in buzzer and RTC for alerts
- Dual DC power inputs (terminal block and power jack) with reverse polarity protection
- Metal housing with optional DIN-rail and wall-mount kits

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232 serial ports with 8-pin RJ45 connectors
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), switch-style cascade
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- Console port: RS-232 (TxD, RxD, GND), 3-pin
- Input voltage: 12 to 48 VDC, 2 power inputs, reverse polarity protection
- Input current: 611 mA @ 12 VDC
- Operating temperature: 0 to 55°C (32 to 131°F)
- Storage temperature: -40 to 75°C (-40 to 167°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Metal housing, 229 x 46 x 125 mm with ears (197 x 44 x 125 mm without ears)
- Weight: 1,520 g
- Mounting: desktop, optional DIN-rail kit, optional wall-mount kit
- Security: HTTPS (TLS 1.2), SNMPv3
- Certifications: EN 55032/35, CISPR 32, FCC Part 15B Class A, RoHS, CRoHS, WEEE

FAQs

Q: What serial standard do the ports on the NPort 5610-8-DT-J support?
A: All 8 serial ports are RS-232 and use 8-pin RJ45 connectors. It does not provide RS-422 or RS-485 interfaces.

Q: What power input does this model use?
A: It accepts 12 to 48 VDC and has two power inputs, a terminal block and a power jack, with reverse polarity protection.

Q: Can the two Ethernet ports be used to daisy-chain other devices?
A: Yes. The two 10/100BaseT(X) ports act as switch-style ports, so you can cascade to another NPort or Ethernet device without adding a separate switch.

Q: How do I set the IP address on site?
A: The built-in LCD panel and push buttons let you configure the IP address directly. You can also use the web console, Telnet console, serial console or the Windows utility.

Q: Can it be rack or DIN-rail mounted?
A: It is a desktop unit by default. Optional DIN-rail and wall-mount kits are available, and the housing is metal.

Q: What operating temperature range does it support?
A: The NPort 5610-8-DT-J operates from 0 to 55°C. It is intended for standard environments rather than extended-temperature conditions.
