Moxa NPort 5610-8-DT | NPort 5600-DT 8-Port RS-232 Serial Device Server, DB9

Authorised Moxa Partner

SKU:NPort 5610-8-DT

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

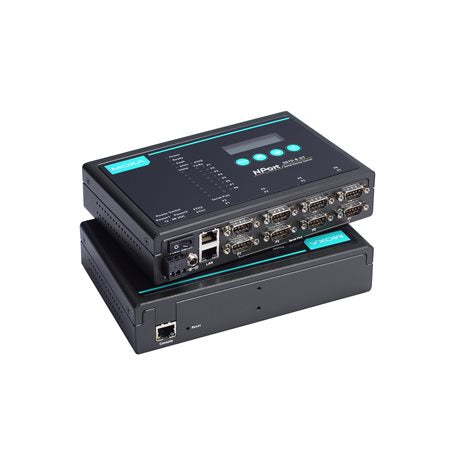

The Moxa NPort 5610-8-DT is an 8-port RS-232 serial device server that connects DB9 male serial devices to a 10/100M Ethernet network. Built for desktop installation in a metal housing, it suits industrial automation, building management and point-of-sale deployments that need to bring legacy serial equipment onto an IP network. This standard temperature model operates from 0 to 55 C and accepts a 12 to 48 VDC power input.

Two 10/100BaseT(X) Ethernet ports allow cascade wiring, and dual power inputs (terminal block and power jack) provide a redundant supply option. An LCD panel and push buttons make IP address setup quick, while Telnet, web (HTTP/HTTPS) and Windows utility configuration are also supported. Socket modes include TCP server, TCP client, UDP and Real COM, and optional kits allow DIN-rail or wall mounting.

Features

- 8 serial ports supporting RS-232
- Compact desktop design
- 10/100M auto-sensing Ethernet
- Two Ethernet ports for cascade wiring
- Easy IP address configuration with LCD panel
- Configure by Telnet, web browser or Windows utility
- Socket modes: TCP server, TCP client, UDP, Real COM
- SNMP MIB-II for network management
- Dual power inputs: terminal block and power jack
- Built-in watchdog timer, buzzer and RTC for reliability and alerts

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232 serial ports, DB9 male
- 2 x 10/100BaseT(X) Ethernet ports (RJ45)
- Baudrate: 50 bps to 921.6 kbps
- Flow control: RTS/CTS, DTR/DSR, XON/XOFF
- Input voltage: 12 to 48 VDC, dual power inputs (terminal block and power jack)
- Reverse polarity protection supported
- 1.5 kV magnetic isolation protection on Ethernet ports
- Serial surge protection: 0.5 kV
- Metal housing, desktop installation
- Optional DIN-rail or wall mounting kit
- Dimensions (without ears): 197 x 44 x 125 mm
- Dimensions (with ears): 229 x 46 x 125 mm
- Weight: 1,570 g
- Operating temperature: 0 to 55 C
- Storage temperature: -40 to 75 C
- Humidity: 5 to 95% non-condensing
- Security: HTTPS (TLS 1.2), SNMPv3
- Certifications: FCC Part 15B Class A, CISPR 32, EN 55032/35, UL 60950-1, IEC 62368-1, RoHS

FAQs

Q: What type of serial interface does the NPort 5610-8-DT support?
A: It provides 8 RS-232 serial ports with DB9 male connectors. It does not support RS-422 or RS-485.

Q: What is the power input range?
A: It accepts 12 to 48 VDC and has two power inputs, a terminal block and a power input jack.

Q: Can the Ethernet ports be daisy-chained?
A: Yes. The two 10/100BaseT(X) RJ45 ports allow cascade wiring so you can connect another device without an additional switch port.

Q: How is the device configured?
A: Configuration options include the front LCD panel and push buttons for IP setup, plus a serial console, Telnet console, web console (HTTP/HTTPS) and a Windows utility.

Q: Which operating modes are available for the serial ports?
A: Socket modes include TCP server, TCP client, UDP and Real COM, covering most host software and legacy serial application requirements.

Q: Is this model suitable for wide temperature environments?
A: This is the standard temperature model, rated for 0 to 55 C operation, so it suits controlled indoor environments.

Q: Can it be rack, DIN-rail or wall mounted?
A: It is designed for desktop use, with DIN-rail and wall mounting available using optional kits.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
