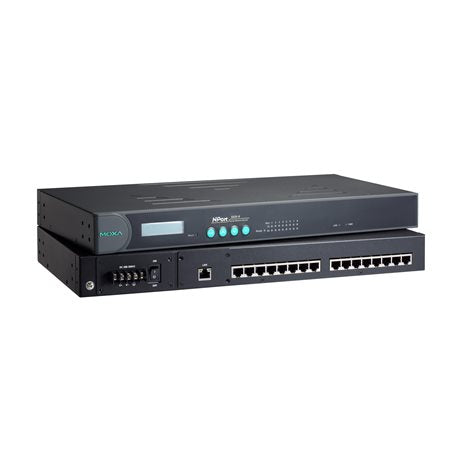

Moxa NPort 5610-8-48V | NPort 5600 8-Port RS-232 Serial Device Server, ±48 VDC

Authorised Moxa Partner

SKU:NPort 5610-8-48V

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The NPort 5610-8-48V is an 8-port RS-232 rackmount serial device server that connects serial devices to an Ethernet LAN through 8-pin RJ45 serial connectors. This ±48 VDC input model suits telecom and DC-powered racks, and it fits a standard 19-inch rack in a metal housing with an LCD panel and push buttons for quick IP configuration.

Each serial port supports baud rates from 50 bps to 921.6 kbps and operates in Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, RFC2217 and Pair Connection modes. Real COM and Real TTY drivers cover Windows and Linux, with fixed TTY drivers for macOS, and HTTPS (TLS 1.2) and SNMPv3 secure remote management.

Features

- Standard 19-inch rackmount size
- Socket modes: TCP server, TCP client, UDP
- SNMP MIB-II for network management
- Real COM and Real TTY drivers for Windows and Linux, fixed TTY drivers for macOS
- Android API support
- LCD panel and push buttons for easy IP configuration
- Built-in watchdog timer for automatic reboot
- HTTPS (TLS 1.2) and SNMPv3 security
- Low-voltage ±48 VDC input

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x RS-232 serial ports (8-pin RJ45)
- 1 x 10/100BaseT(X) RJ45 Ethernet port with 1.5 kV magnetic isolation
- Baud rate: 50 bps to 921.6 kbps
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Power input: ±48 VDC (20 to 72 VDC, -20 to -72 VDC)
- Input current: 135 mA @ 48 VDC
- 19-inch rack mounting, metal housing, LCD panel
- Dimensions (with ears): 480 x 45.5 x 198.25 mm
- Weight: 3,160 g
- Operating temperature: 0 to 60°C
- MTBF: 892,692 hrs (MIL-HDBK-217F)

FAQs

Q: What serial standard do the ports on the NPort 5610-8-48V support?
A: All 8 serial ports are RS-232 with 8-pin RJ45 connectors, supporting TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals.

Q: What power input does this model use?
A: This model takes a ±48 VDC input (20 to 72 VDC or -20 to -72 VDC), drawing 135 mA at 48 VDC. It is intended for DC-powered racks.

Q: Which operating modes are supported?
A: Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection, Reverse Telnet and RFC2217 modes are supported, and individual ports can also be disabled.

Q: How is the device configured?
A: You can configure it using the front-panel LCD and push buttons, a Telnet console, a web console over HTTP or HTTPS, or the Windows utility.

Q: Does it support drivers for my operating system?
A: Real COM and Real TTY drivers are available for Windows and Linux, fixed TTY drivers for macOS, and an Android API is supported.

Q: How does this differ from other NPort 5610-8 models?
A: This SKU is the 8-port RS-232 version with a ±48 VDC power input, whereas other 5600 series SKUs vary in port count or power input.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
