Moxa NPort 5610-16-48V | NPort 5600 16-Port RS-232 Rackmount Device Server, 48 VDC

Moxa NPort 5610-16-48V | NPort 5600 16-Port RS-232 Rackmount Device Server, 48 VDC

Authorised Moxa Partner

NPort 5610-16-48V

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

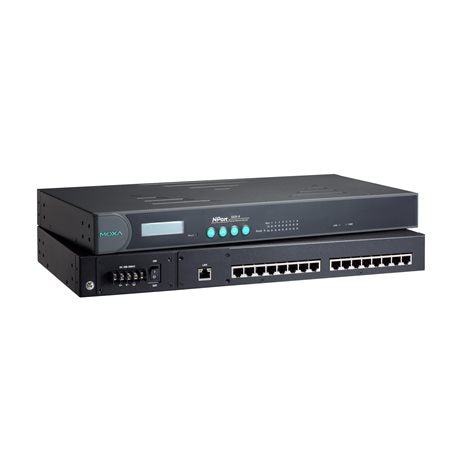

The Moxa NPort 5610-16-48V is a 16-port RS-232 rackmount serial device server that connects legacy serial equipment to an Ethernet network through 8-pin RJ45 serial connectors. This variant is powered from a ±48 VDC input (20 to 72 VDC or -20 to -72 VDC), making it well suited to telecommunications and DC-powered rack environments.

In a standard 19-inch chassis with a metal housing, the unit supports Real COM, TCP Server, TCP Client, UDP, Reverse Telnet and RFC2217 modes, with Real COM and TTY drivers for Windows, Linux and other operating systems. The LCD panel simplifies IP address setup, and HTTPS (TLS 1.2) and SNMPv3 support help secure remote management.

Features

- Standard 19-inch rackmount size
- Easy IP address configuration with the LCD panel
- Configuration via Telnet, web browser, or Windows utility
- Socket modes: TCP server, TCP client, UDP
- Real COM and TTY drivers for Windows, Linux and other operating systems
- HTTPS (TLS 1.2) and SNMPv3 security support
- Built-in watchdog timer for automatic reboot

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x RS-232 serial ports, 8-pin RJ45 connectors
- 1 x 10/100BaseT(X) Ethernet port (RJ45), 1.5 kV built-in magnetic isolation
- Serial signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: None, RTS/CTS, DTR/DSR, XON/XOFF
- Operation modes: Real COM, TCP Client, TCP Server, UDP, Ethernet Modem, Pair Connection, Reverse Telnet, RFC2217, Disabled
- Serial line protection: 15 kV ESD on all signals
- Input voltage: ±48 VDC, 20 to 72 VDC, -20 to -72 VDC
- Input current: 135 mA @ 48 VDC
- Operating temperature: 0 to 60°C
- Metal housing
- Dimensions: 480 x 45.5 x 198 mm with ears; 440 x 45.5 x 198 mm without ears
- Weight: 3,260 g (7.19 lb)
- Built-in watchdog timer (WDT) for automatic reboot

FAQs

Q: What power input does the NPort 5610-16-48V use?
A: It runs from a DC input of ±48 VDC, with an accepted range of 20 to 72 VDC or -20 to -72 VDC, drawing 135 mA at 48 VDC. It is intended for DC-powered racks rather than AC mains.

Q: How many serial ports does it provide and what interface?
A: It provides 16 RS-232 serial ports on 8-pin RJ45 connectors, supporting TxD, RxD, RTS, CTS, DTR, DSR, DCD and GND signals.

Q: Which operating modes are supported?
A: Real COM, TCP Client, TCP Server, UDP, Ethernet Modem, Pair Connection, Reverse Telnet and RFC2217 modes are supported.

Q: How is the device configured?
A: The IP address can be set from the front LCD panel, and the unit can then be configured through Telnet, a web browser or the Windows utility.

Q: Is it a standard 19-inch rackmount unit?
A: Yes. It fits a standard 19-inch rack, measuring 480 x 45.5 x 198 mm with mounting ears and 440 x 45.5 x 198 mm without them.

Q: Which operating systems have driver support?
A: Real COM and TTY drivers are available for Windows, Linux and other operating systems, so existing serial software can communicate over the network.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
