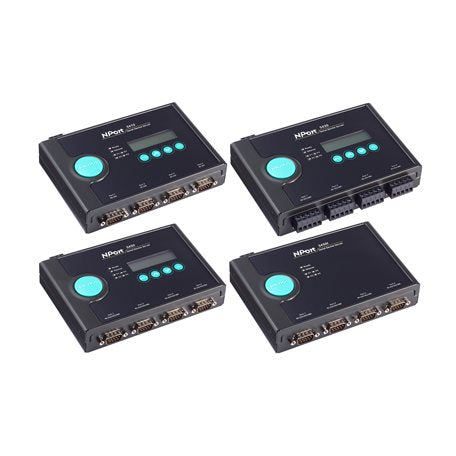

• Moxa NPort 5450I 4-port serial-to-Ethernet converter with teal buttons and display
1 1

Moxa

Moxa NPort-5450I | NPort 5400 4-Port RS-232/422/485 Serial Device Server

Moxa NPort-5450I | NPort 5400 4-Port RS-232/422/485 Serial Device Server

Authorised Moxa Partner

NPort 5450I

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort 5450I is a 4-port RS-232/422/485 serial device server that connects existing serial equipment to a 10/100 Ethernet network. Each DB9 male port is software selectable between RS-232, RS-422 and RS-485 and carries 2 kV serial isolation, making it well suited to industrial automation, building management and SCADA environments with a 0 to 55°C operating range.

Configuration is straightforward through the front LCD panel with push buttons, the web console (HTTP/HTTPS), Telnet console or the Windows utility. Real COM and Real TTY drivers, TCP server, TCP client, UDP and reverse Telnet modes let legacy serial devices integrate with modern networks, while dual 12 to 48 VDC power inputs support redundant supply. Security is covered by HTTPS (TLS 1.2), SNMPv3 and AES-128 encryption.

Features

- User-friendly LCD panel and push buttons for easy installation
- 2 kV serial isolation protection
- Adjustable termination and pull high/low resistors for RS-485
- Dual DC power inputs with power jack and terminal block
- Real COM and Real TTY drivers for Windows, Linux and other operating systems
- Operation modes: Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection and Reverse Telnet
- HTTPS (TLS 1.2), SNMPv3 and AES-128 encryption support
- Built-in watchdog timer, buzzer and real-time clock alerts
- Management via Telnet, web console, Windows utility, SNMP and LLDP

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports (DB9 male)
- 1 x 10/100BaseT(X) Ethernet port (RJ45)
- 2 kV serial isolation
- Baudrate: 50 bps to 921.6 kbps (standard rates)
- Data bits: 5, 6, 7, 8; stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS and DTR/DSR (RS-232 only)
- RS-485 pull high/low resistor: 1 kilo-ohm, 150 kilo-ohms; terminator: 120 ohms
- RS-485 data direction control: ADDC (automatic)
- Power: 12 to 48 VDC, dual power inputs (terminal block and power jack)
- Input current: 550 mA @ 12 VDC
- Metal housing, 158 x 103 x 33 mm (181 mm with ears), 740 g
- Installation: desktop, wall mount or DIN-rail (with optional kit)
- Operating temperature: 0 to 55°C; storage temperature: -40 to 75°C
- Humidity: 5 to 95% (non-condensing)
- Certifications: FCC Part 15B Class A, CISPR 32, EN 55032/35, UL 62368-1, DNV, EN 60601-1-2 Class B
- MTBF: 678,381 hrs (Telcordia)

FAQs

Q: What serial interfaces does the NPort 5450I support?
A: Each of the four DB9 male serial ports supports RS-232, RS-422 and RS-485, with baudrates up to 921.6 kbps.

Q: How is the NPort 5450I configured?
A: It can be configured through the front LCD panel and push buttons, a web console over HTTP or HTTPS, a Telnet console or the Windows utility.

Q: Does it offer serial isolation?
A: Yes. The serial ports provide 2 kV isolation, and the Ethernet port has 1.5 kV built-in magnetic isolation.

Q: What power input does it require?
A: It accepts 12 to 48 VDC and has dual power inputs, one removable 3-contact terminal block and one power input jack, for redundant supply.

Q: Which operating modes are available for serial devices?
A: Real COM, TCP Server, TCP Client, UDP, Ethernet Modem, Pair Connection and Reverse Telnet modes are supported, along with Real COM and Real TTY drivers for Windows and Linux.

Q: Can it be mounted on a DIN rail?
A: Yes. It can be installed on a desktop, on a wall, or on a DIN rail using the optional DIN-rail mounting kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
