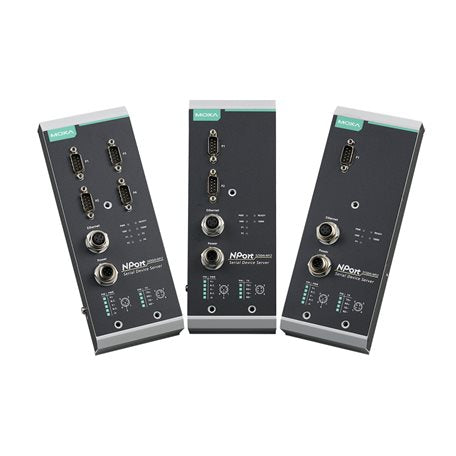

• Three Moxa NPort 5450AI-M12-CT-T device servers, 4-port RS232/422/485, M12
1 1

Moxa

Moxa NPort 5450AI-M12-CT-T | NPort 5450AI-M12 4-Port Serial Device Server, 12-48 VDC, Coated

Moxa NPort 5450AI-M12-CT-T | NPort 5450AI-M12 4-Port Serial Device Server, 12-48 VDC, Coated

Authorised Moxa Partner

NPort 5450AI-M12-CT-T

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Moxa NPort 5450AI-M12-CT-T is a 4-port RS-232/422/485 serial device server with M12 connectors for Ethernet and power. It connects serial devices to an Ethernet network, accepts a 12 to 48 VDC input and operates from -40 to 75°C, with PCB conformal coating for harsh industrial and rail environments.

Each DB9 male serial port provides 2 kV isolation and software-selectable RS-232, RS-422 or RS-485 operation with automatic data direction control. The unit is compliant with EN 50155 on 24/48 VDC and EN 50121-4, comes in an IP40 metal housing, and is configured through a web console, Windows utility or Telnet. Drivers are available for Windows Real COM, Linux Real TTY, Fixed TTY and Android.

Features

- 3-step web-based configuration
- COM port grouping and UDP multicast applications
- Complies with EN 50121-4 and EN 50155
- M12 connectors and IP40 metal housing
- 2 kV isolation for serial signals
- Windows Real COM, Linux Real TTY, Fixed TTY and Android API drivers
- Built-in watchdog timer, buzzer and real-time clock
- Optional DIN-rail kit, desktop and wall mounting
- Configuration via Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility, MCC Tool or Telnet Console

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports, DB9 male
- M12 Ethernet connector
- M12 A-coded 5-pin male power connector
- Input voltage: 12 to 48 VDC
- Input current: 440 mA @ 12 VDC
- Operating temperature: -40 to 75°C
- PCB conformal coating
- Serial isolation: 2 kV
- Baudrate: 50 bps to 921.6 kbps
- Data bits: 5, 6, 7, 8
- Stop bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR (RS-232 only), XON/XOFF
- RS-485 data direction control: ADDC
- Automatic reboot trigger: built-in WDT
- Alert tools: built-in buzzer and RTC
- Dimensions: 80 x 216.6 x 52.9 mm
- Weight: 686 g
- Compliant with EN 50155 on 24/48 VDC

FAQs

Q: What serial interfaces does the NPort 5450AI-M12-CT-T support?
A: It has four DB9 male serial ports, each supporting RS-232, RS-422 and RS-485. RS-485 operation uses automatic data direction control (ADDC).

Q: What power input does this model use?
A: It accepts 12 to 48 VDC through an M12 A-coded 5-pin male connector, and is compliant with EN 50155 on 24/48 VDC.

Q: What is the operating temperature range?
A: The -T model operates from -40 to 75°C, and the PCB conformal coating adds protection for harsh environments.

Q: Is this suitable for rail applications?
A: Yes. It uses M12 connectors, complies with EN 50121-4 and EN 50155, and is designed for rail and other harsh industrial deployments.

Q: How is the device configured?
A: Configuration is available through a web console (HTTP/HTTPS), a Windows utility, the Device Search Utility (DSU), the MCC Tool or a Telnet console.

Q: Which operating systems are supported for COM port mapping?
A: Moxa provides Windows Real COM, Linux Real TTY and Fixed TTY drivers, plus an Android API.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
