Moxa NPort-5450 | NPort 5450 4-Port RS-232/422/485 Serial Device Server

Authorised Moxa Partner

SKU:NPort 5450

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The NPort 5450 is a 4-port RS-232/422/485 serial device server that connects serial equipment to a 10/100 Ethernet network. Each port uses a DB9 male connector with no isolation, and the unit runs from 12 to 48 VDC over an operating range of 0 to 55 C. A built-in LCD panel makes on-site installation and IP setup quick for network and systems teams.

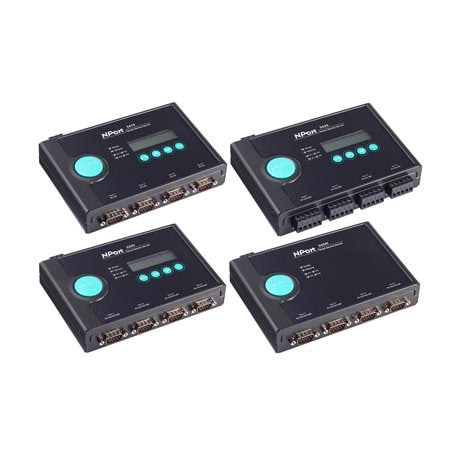

Part of the NPort 5400 Series, it supports Real COM, TCP Server, TCP Client, UDP, Reverse Telnet and Pair Connection modes, with Real TTY and fixed TTY drivers for Linux, Unix and Mac OS X. Dual DC power inputs (terminal block and power jack) and a metal housing suit control cabinets, building systems and industrial serial-to-Ethernet deployments.

Features

- User-friendly LCD panel for easy installation and IP configuration
- Four software-selectable RS-232, RS-422 and RS-485 serial ports
- Adjustable termination and pull high/low resistors for RS-485 networks
- Socket modes: TCP server, TCP client and UDP
- Configure by Telnet, web browser or Windows utility
- SNMP MIB-II support for network management
- Dual DC power inputs (terminal block and power jack) for flexible power connection
- Real TTY drivers for Linux and fixed TTY drivers for Unix variants and Mac OS X

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x RS-232/422/485 serial ports, DB9 male, no isolation
- 1 x 10/100BaseT(X) Ethernet port (RJ45) with 1.5 kV built-in magnetic isolation
- Input voltage 12 to 48 VDC, 2 power inputs (removable 3-contact terminal block and power jack)
- Input current 350 mA @ 12 VDC
- Operating temperature 0 to 55 C
- Data bits 5, 6, 7, 8; stop bits 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow control: RTS/CTS, DTR/DSR (RS-232 only), XON/XOFF
- RS-485 pull high/low resistors 1 kilo-ohm or 150 kilo-ohms, 120 ohm terminator, ADDC data direction control
- Operation modes: Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, Pair Connection, Ethernet Modem
- Configuration via Telnet console, Windows utility or web console (HTTP/HTTPS)
- Management protocols include SNMPv1/v2c, DHCP, DNS, LLDP, SMTP and IPv4
- Metal housing, 181 x 103 x 33 mm with ears, 740 g
- MTBF 206,903 hrs (Telcordia)

FAQs

Q: What serial interfaces does the NPort 5450 support?
A: Each of the four DB9 male serial ports supports RS-232, RS-422 and RS-485 (2-wire and 4-wire), selectable in software.

Q: How is the NPort 5450 powered?
A: It accepts 12 to 48 VDC through either a removable 3-contact terminal block or a power input jack, giving two power inputs.

Q: Do the serial ports have isolation?
A: No. This model has no serial port isolation. The Ethernet port has 1.5 kV built-in magnetic isolation.

Q: Which operating modes are available?
A: Real COM, TCP Server, TCP Client, UDP, Reverse Telnet, Pair Connection and Ethernet Modem modes are supported.

Q: What operating systems have driver support?
A: Real COM drivers are available for Windows, Real TTY drivers for Linux kernels 2.4.x to 5.x, and fixed TTY drivers for SCO UNIX, QNX, Solaris 10, FreeBSD, AIX, HP-UX 11i and Mac OS X.

Q: What is the operating temperature range?
A: This model operates from 0 to 55 C, so it suits standard indoor and cabinet environments rather than extended-temperature sites.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
